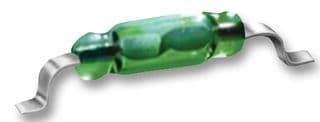

The RI-80SMD0515-G2 is a dry reed switch with a contact current rating of 250mA and a switch type of SPST. It features a body diameter of 1.8mm and a body length of 5mm, with a body material of glass. The switch is packaged in a SMD/SMT package and is lead free. It has a maximum operating temperature of 125°C and a minimum operating temperature of -55°C. The RI-80SMD0515-G2 is suitable for surface mount and PCB applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Coto RI-80SMD0515-G2 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Coto RI-80SMD0515-G2 technical specifications.
| Body Diameter | 1.8mm |
| Body Length | 5mm |
| Body Material | Glass |
| Package/Case | SMD/SMT |
| Contact Current Rating | 250mA |
| Contact Material | Ruthenium |
| Contact Plating | Gold |
| Lead Free | Lead Free |
| Length | 10.16mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1 |
| Packaging | Cut Tape |
| Reach SVHC Compliant | No |
| Series | RI-80 |
| Switch Type | Dry Reed |
| Termination | SMD/SMT |
| Throw Configuration | SPST |
| RoHS | Compliant |
