Schottky rectifier diode with a 1.2kV DC rated voltage and 5A forward current. Features a 17.5A average rectified current, 100A peak non-repetitive surge current, and 136W maximum power dissipation. Operates across a wide temperature range from -55°C to 175°C. Packaged in a TO-220 case with through-hole mounting. RoHS compliant and lead-free.
PackageTO-220
Capacitance28pF
Current Rating5A
MountingThrough Hole
Quick Jump:
Technical Specifications
Cree C2D05120A technical specifications.
General
Average Rectified Current
17.5A
Capacitance
28pF
Package/Case
TO-220
Current Rating
5A
Forward Current
5A
Height
15.621mm
Lead Free
Lead Free
Length
10.41mm
Max Forward Surge Current (Ifsm)
100A
Max Operating Temperature
175°C
Min Operating Temperature
-55°C
Max Power Dissipation
136W
Max Repetitive Reverse Voltage (Vrrm)
1.2kV
Max Reverse Current
1mA
Max Reverse Leakage Current
200uA
Max Reverse Voltage (DC)
1.2kV
Max Surge Current
100A
Mount
Through Hole
Output Current
5A
Packaging
Rail/Tube
Peak Non-Repetitive Surge Current
100A
Polarity
Standard
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Reverse Recovery Time
0ns
RoHS Compliant
Yes
Series
Zero Recovery™
DC Rated Voltage
1.2kV
Width
4.699mm
Compliance
RoHS
Compliant
Datasheet
Cree C2D05120A Datasheet
Download the complete datasheet for Cree C2D05120A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

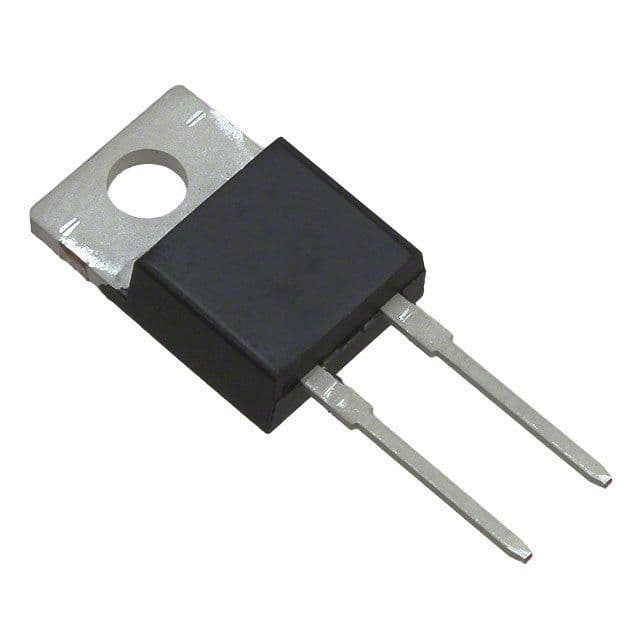

Product Images
