Schottky rectifier diode for general-purpose rectification. Features a 600V repetitive reverse voltage (Vrrm) and 10A forward current, with a 30A average rectified current. Silicon carbide construction ensures high performance with a maximum operating temperature of 175°C. Packaged in a TO-220AC through-hole mount, this RoHS compliant component offers a 250A peak non-repetitive surge current and 0ns reverse recovery time.
PackageTO-220
MountingThrough Hole
Quick Jump:
Technical Specifications
Cree C3D10060A technical specifications.
General
Average Rectified Current
30A
Package/Case
TO-220
Forward Current
29.5A
Height
15.621mm
Length
10.41mm
Max Forward Surge Current (Ifsm)
250A
Max Operating Temperature
175°C
Min Operating Temperature
-55°C
Max Power Dissipation
136.3W
Max Repetitive Reverse Voltage (Vrrm)
600V
Max Reverse Current
50uA
Max Reverse Leakage Current
50uA
Max Reverse Voltage (DC)
600V
Max Surge Current
250A
Mount
Through Hole
Packaging
Rail/Tube
Peak Non-Repetitive Surge Current
250A
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Reverse Recovery Time
0ns
RoHS Compliant
Yes
Series
Z-Rec®
Width
4.699mm
Compliance
RoHS
Compliant
Datasheet
Cree C3D10060A Datasheet
Download the complete datasheet for Cree C3D10060A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

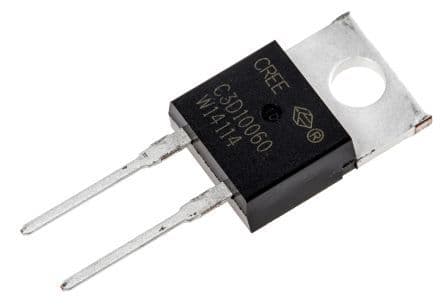

Product Images
