Technical Specifications
Cree C3D10170H technical specifications.
General
Average Rectified Current
14.4A
Package/Case
TO-247
Forward Current
14.4A
Max Forward Surge Current (Ifsm)
55A
Max Operating Temperature
175°C
Min Operating Temperature
-55°C
Max Power Dissipation
231W
Max Repetitive Reverse Voltage (Vrrm)
1.7kV
Max Reverse Current
60uA
Max Reverse Leakage Current
60uA
Max Reverse Voltage (DC)
1.7kV
Max Surge Current
55A
Mount
Through Hole
Packaging
Rail/Tube
Peak Non-Repetitive Surge Current
55A
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Reverse Recovery Time
0ns
RoHS Compliant
Yes
Series
Z-Rec®
Compliance
RoHS
Compliant
Datasheet
Cree C3D10170H Datasheet
Download the complete datasheet for Cree C3D10170H to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

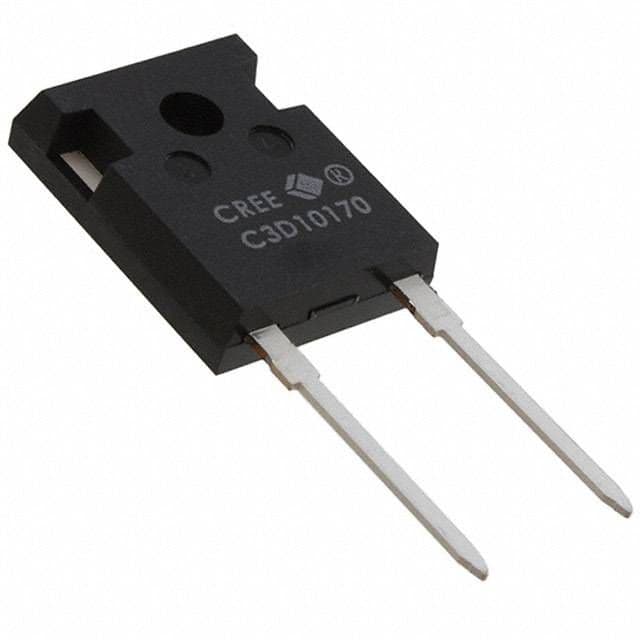

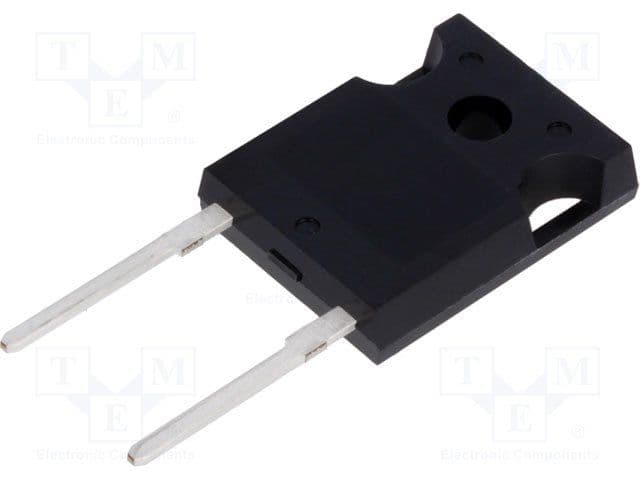

Product Images
