Cree C3D25170H technical specifications.
General
Average Rectified Current
26.3A
Package/Case
TO-247
Forward Current
26.3A
Max Forward Surge Current (Ifsm)
117A
Max Operating Temperature
175°C
Min Operating Temperature
-55°C
Max Power Dissipation
377W
Max Repetitive Reverse Voltage (Vrrm)
1.7kV
Max Reverse Current
100uA
Max Reverse Leakage Current
100uA
Max Reverse Voltage (DC)
1.7kV
Max Surge Current
117A
Mount
Through Hole
Packaging
Rail/Tube
Peak Non-Repetitive Surge Current
117A
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Reverse Recovery Time
0ns
RoHS Compliant
Yes
Series
Z-Rec®
Compliance
RoHS
Compliant
Datasheet
Cree C3D25170H Datasheet
Download the complete datasheet for Cree C3D25170H to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

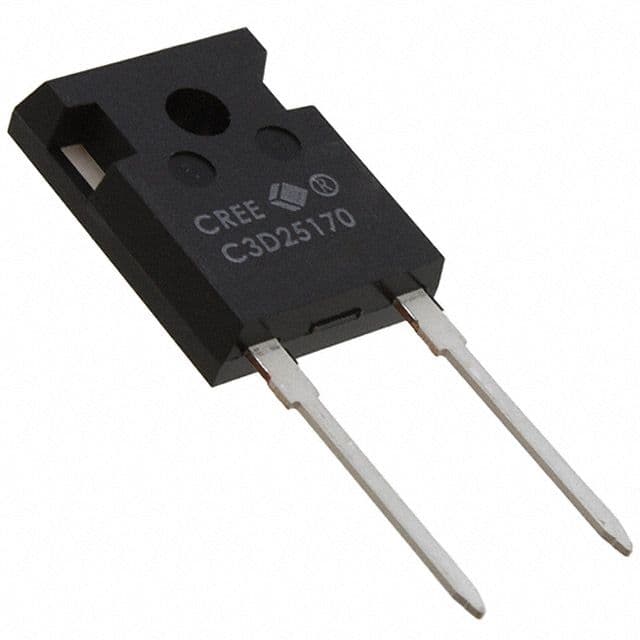

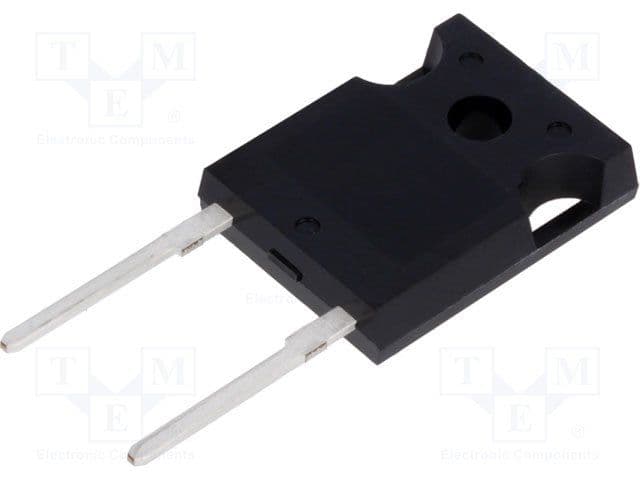

Product Images
