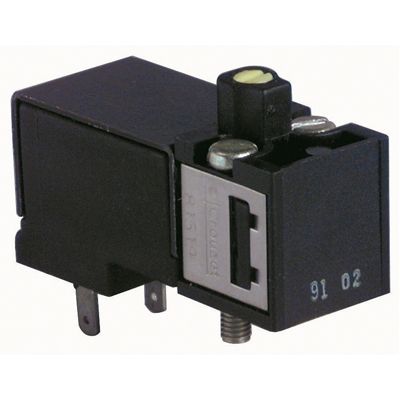

The Crouzet 81519380 solenoid valve is designed for use with air and inert gas, with a maximum operating temperature of 50°C and a minimum operating temperature of -10°C. It features a mechanical life of 50,000,000 cycles and is rated for use in environments with an operating pressure of 116PSI. The valve is mounted via a base manifold and is rated to IP20. Weighing 0.077lb, this valve is suitable for use in industrial automation and control applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Crouzet 81519380 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Fluid Type | Air, Inert Gas |
| Manufacturer Series | 81 |
| Max Operating Temperature | 50°C |
| Mechanical Life | 50000000Cycles |
| Min Operating Temperature | -10°C |
| Mount | Base |
| Mounting Style | MANIFOLD |
| Operating Pressure | 116PSI |
| Ratings | IP20 |
| Weight | 0.077lb |
| RoHS | Compliant |
Download the complete datasheet for Crouzet 81519380 to view detailed technical specifications.
