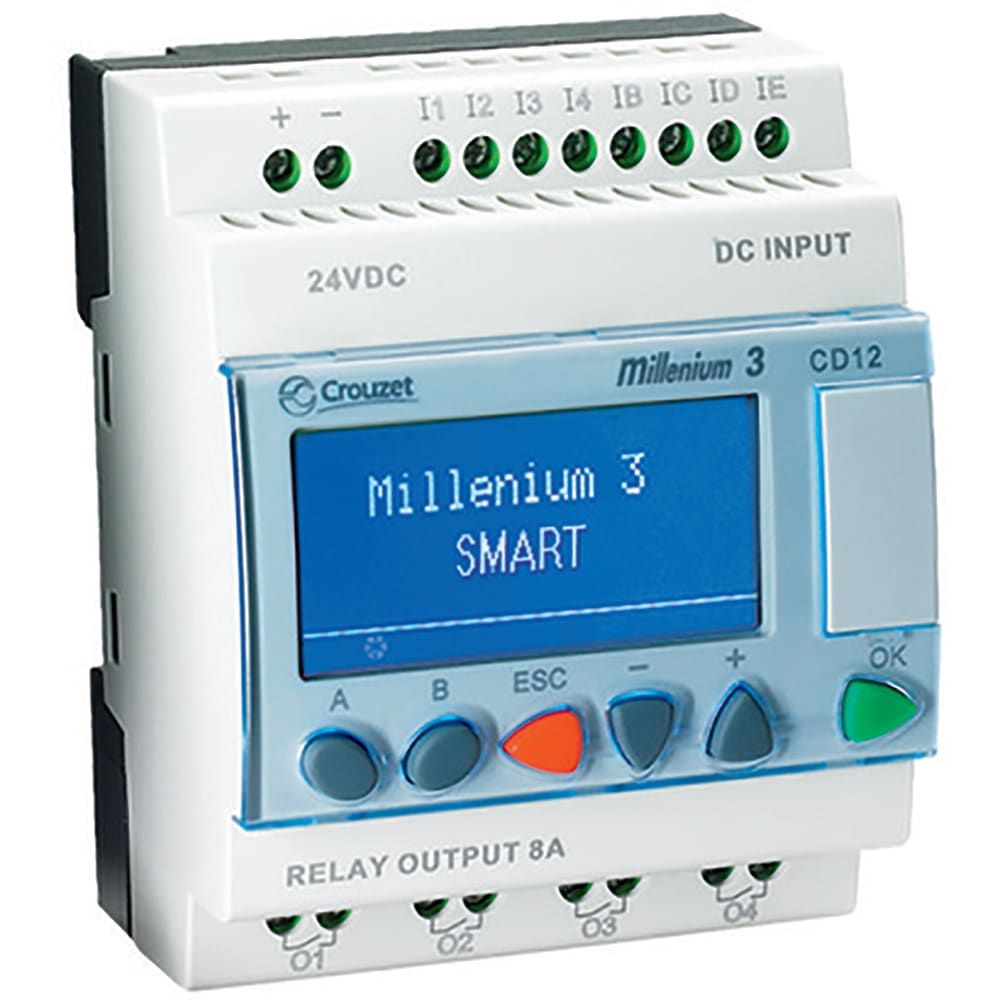

This digital relay module from Crouzet features 6 inputs and 4 outputs, with a maximum operating temperature of 70°C and an IP40 rating. It is designed for use in industrial automation and control applications, with a mechanical life of 10 million cycles and a response time of 5ms. The module is mounted via DIN rail or chassis, with a screw termination and a compact size of 57.5mm x 72mm x 57.4mm.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Crouzet 88970225 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Crouzet 88970225 technical specifications.
| Approvals | UL, CSA, CE |
| Package/Case | Module |
| Depth | 57.4mm |
| Display Type | LCD |
| Input Type | DIGITAL |
| Length | 107.6mm |
| Max Operating Temperature | 70°C |
| Mechanical Life | 10000000Cycles |
| Min Operating Temperature | -20°C |
| Mount | DIN Rail, Chassis Mount |
| Number of Inputs | 6 |
| Number of Outputs | 4 |
| Output Type | RELAY |
| Package Quantity | 1 |
| Ratings | IP40 |
| Response Time | 5ms |
| Series | Millenium 3 |
| Size | 57.5mm |
| Termination | Screw |
| Width | 72mm |
| RoHS | Compliant |
Download the complete datasheet for Crouzet 88970225 to view detailed technical specifications.
