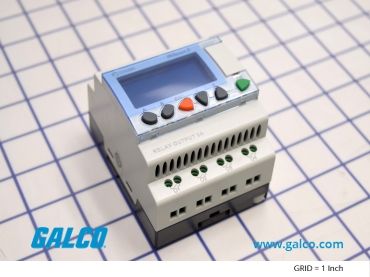

Compact programmable logic controller (PLC) featuring 8 digital inputs and 4 relay outputs, each rated for 8A. Operates on a 240VAC supply and offers a 5ms response time. Equipped with an LCD display and 368b memory. Mounts via DIN rail, chassis, or panel, with dimensions of 59.5mm (L) x 71.2mm (W) x 90mm (H). Approvals include UL, CSA, and CE, with an IP40 rating.
PackageModule
Storage58mm
MountingDIN Rail, Chassis Mount, Panel
Quick Jump:
Technical Specifications
Crouzet 88974043 technical specifications.
General
Approvals
UL, CSA, CE
Package/Case
Module
Depth
68mm
Display Type
LCD
Height
90mm
Input Type
DIGITAL
Length
59.5mm
Manufacturer Series
Millenium 3
Max Operating Temperature
70°C
Mechanical Life
10000000Cycles
Memory Size
368b
Min Operating Temperature
-20°C
Mount
DIN Rail, Chassis Mount, Panel
Number of Inputs
8
Number of Outputs
4
Operating Supply Voltage
240V
Output Current
8A
Output Type
RELAY
Package Quantity
1
Packaging
Bulk
Ratings
IP40
Reach SVHC Compliant
Unknown
Response Time
5ms
Series
Millenium 3, CD12
Size
58mm
Termination
Screw
Width
71.2mm
Compliance
RoHS
Not Compliant
Datasheet
Crouzet 88974043 Datasheet
Download the complete datasheet for Crouzet 88974043 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
