General purpose SCR output optocoupler featuring 2.5kV isolation voltage and a 2A load current capability. This component operates with a 10V control voltage and 15mA input current, supporting DC input. The MINI-SIP-4 package facilitates through-hole PCB mounting. It offers a maximum output voltage of 280V and operates across a temperature range of -30°C to 80°C.
PackageSIP
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Crydom ASO242 technical specifications.
General
| Package/Case | SIP |
| Control Voltage | 10V |
| Depth | 5.1mm |
| Height | 12.7mm |
| Input Current | 15mA |
| Input Type | DC |
| Isolation Voltage | 2.5kV |
| Isolation Voltage-Max | 2.5kV |
| Lead Free | Lead Free |
| Length | 24.1mm |
| Load Current | 2A |
| Max Input Current | 15mA |
| Max Input Voltage | 10V |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -30°C |
| Max Output Current | 2A |
| Max Output Voltage | 280V |
| Mount | Through Hole, PCB |
| Output Current | 2A |
| Output Voltage | 280V |
| Package Quantity | 20 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Relay Type | Relay |
| RoHS Compliant | Yes |
| Series | ASO |
| Termination | PC Pin |
| Throw Configuration | SPST |
| Width | 5mm |
Compliance
| RoHS | Compliant |
Datasheet
Crydom ASO242 Datasheet
Download the complete datasheet for Crydom ASO242 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

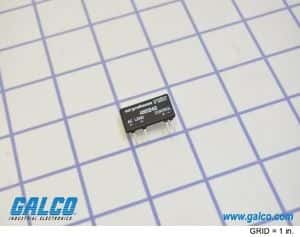

Product Images
