Single-pole, single-throw (SPST) solid-state relay (SSR) with 10A load current and 280V AC maximum output voltage. Features 4kV optical isolation, 3-32V DC control voltage, and 20mA input current. Operates across a -40°C to 80°C temperature range. Panel, chassis, and surface mountable with screw termination. RoHS compliant.
MountingPanel, Chassis Mount, Surface Mount, Screw
Quick Jump:
Technical Specifications
Crydom D2410 technical specifications.
General
Control Voltage
32V
Depth
45.7mm
Height
23mm
Input Current
20mA
Input Type
DC
Isolation Voltage
4kV
Isolation Voltage-Max
4kV
Lead Free
Lead Free
Length
58.4mm
Load Current
10A
Max Input Current
20mA
Max Input Voltage
32V
Max Operating Temperature
80°C
Min Operating Temperature
-40°C
Max Output Voltage
280V
Max Supply Voltage (AC)
280V
Min Supply Voltage (AC)
24V
Max Voltage Rating (AC)
280V
Mount
Panel, Chassis Mount, Surface Mount, Screw
Output Current
10A
Output Voltage
280V
Package Quantity
20
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
Relay Type
Relay
RoHS Compliant
Yes
Series
1
Termination
Screw
Throw Configuration
SPST
Width
45.7mm
Compliance
RoHS
Compliant
Datasheet
Crydom D2410 Datasheet
Download the complete datasheet for Crydom D2410 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

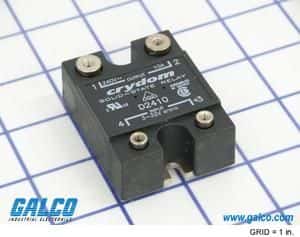

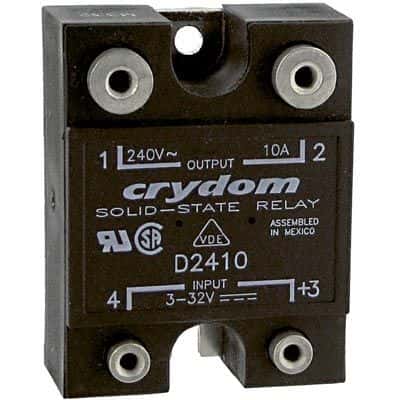

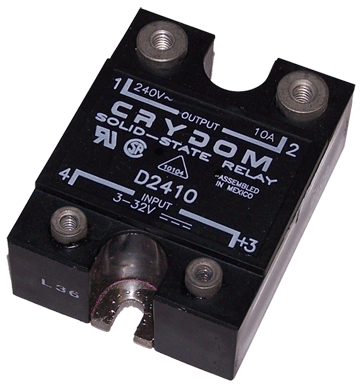

Product Images
