Technical Specifications
Crydom EZ240D12 technical specifications.
General
| Control Voltage | 15V |
| Height | 26.6mm |
| Input Current | 15mA |
| Input Type | DC |
| Isolation Voltage | 4kV |
| Isolation Voltage-Max | 4kV |
| Lead Free | Lead Free |
| Length | 66.5mm |
| Load Current | 12A |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 280V |
| Mount | Screw |
| Output Current | 12A |
| Output Voltage | 280V |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Width | 38mm |
Compliance
| RoHS | Compliant |
Datasheet
Crydom EZ240D12 Datasheet
Download the complete datasheet for Crydom EZ240D12 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

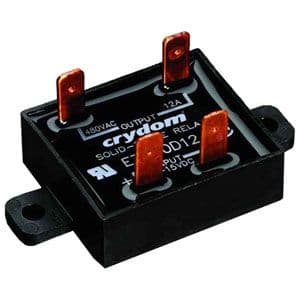

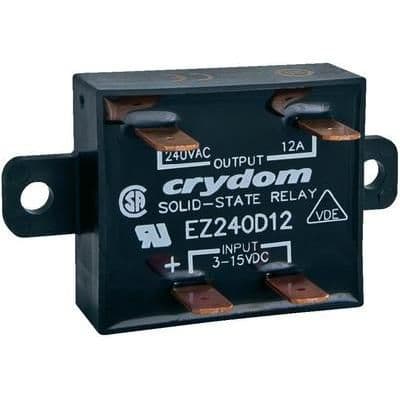

Product Images
