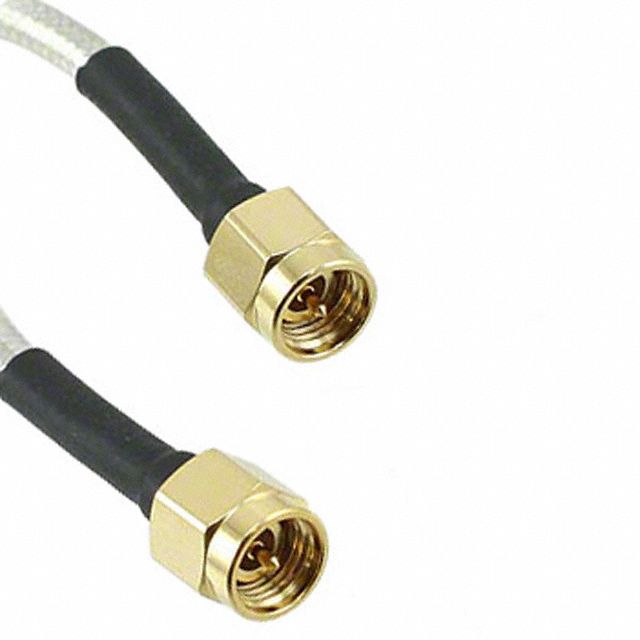

Coaxial cable assembly featuring SMA male-to-male connectors, designed for 50 Ohm impedance and operating up to 18GHz. This shielded assembly utilizes a 0.076m length of 141 series cable, suitable for applications within a temperature range of -40°C to 85°C. The grey colored cable assembly ensures reliable RF signal transmission.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Crystek CCSMA18-MM-141-3 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Crystek CCSMA18-MM-141-3 technical specifications.
| Package/Case | SMA |
| Color | Grey |
| Connector Type A | SMA, Plug |
| Connector Type B | SMA, Plug |
| Features | Shielded |
| Gender | Male to Male |
| Impedance | 50R |
| Max Frequency | 18GHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Series | 141 |
| RoHS | Compliant |
Download the complete datasheet for Crystek CCSMA18-MM-141-3 to view detailed technical specifications.
