Technical Specifications

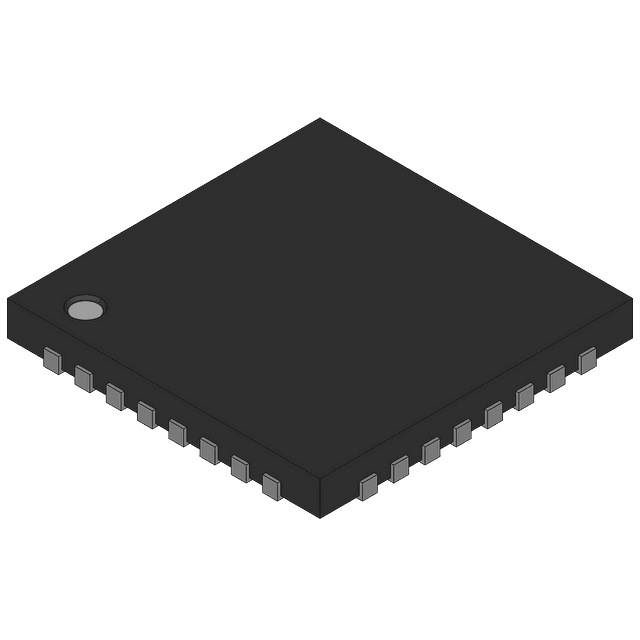

Cypress CY24292LFXI technical specifications.
General
Package/Case
QFN
Input
Crystal
Lead Free
Lead Free
Max Frequency
100MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Number of Circuits
1
Number of Elements
1
Number of Outputs
5
Operating Supply Current
135mA
Operating Supply Voltage
3.3V
Package Quantity
490
Packaging
Rail/Tube
PLL
Yes
RoHS Compliant
Yes
Series
PCI Express® (PCIe)
Supply Current
170mA
Compliance
RoHS
Compliant
Datasheet
Cypress CY24292LFXI Datasheet
Download the complete datasheet for Cypress CY24292LFXI to view detailed technical specifications.
