This 3-position rectangular connector is rated for 30A and has a maximum operating temperature of 125°C. It is made from nylon and features crimp termination. The connector is available in bulk packaging with 62 units per package. It is compliant with RoHS regulations.
Current Rating30A
MountingCable
Quick Jump:
Technical Specifications
Delphi 15300003 technical specifications.
General
| Color | Black |
| Current Rating | 30A |
| Depth | 53mm |
| Gender | Male |
| Height | 26.5mm |
| Material | Nylon |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Cable |
| Number of Contacts | 3 |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Package Quantity | 62 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | 280 |
| Termination | Crimp |
| Width | 32.9mm |
Compliance
| RoHS | Compliant |
Datasheet
Delphi 15300003 Datasheet
Download the complete datasheet for Delphi 15300003 to view detailed technical specifications.
No datasheet is available for this part.

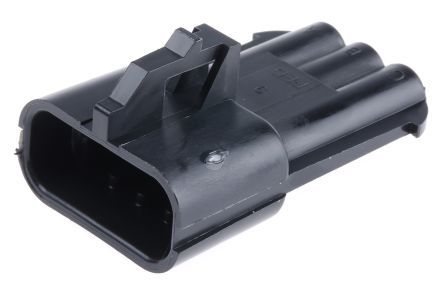

Product Images
