Male, straight, solid pin phono plug designed for cable mounting. Features a metal body with nickel plating and a brass contact with nickel plating. Rated for 5A RMS current and up to 200V DC / 150V AC. Accepts wire/cable diameters up to 5.5mm with a crimp termination. Overall dimensions include a length of 37.2mm and an outside diameter of 10.8mm.
PackageMetal
Current Rating5A
MountingCable
Quick Jump:
Technical Specifications
Deltron 333-0000 technical specifications.
General
| Body Material | Metal |
| Body Plating | Nickel |
| Package/Case | Metal |
| Color | Silver |
| Contact Material | Brass |
| Contact Plating | Nickel |
| Current Rating | 5A |
| Gender | Male |
| Length | 37.2mm |
| Material | Brass |
| Mount | Cable |
| Number of Contacts | 1 |
| Number of Ports | 1 |
| Orientation | Straight |
| Outside Diameter | 10.8mm |
| Package Quantity | 100 |
| Reach SVHC Compliant | Unknown |
| RMS Current (Irms) | 5A |
| RoHS Compliant | No |
| Termination | Crimp |
| Voltage Rating (AC) | 150V |
| DC Rated Voltage | 200V |
| Width | 10.8mm |
| Wire/Cable Diameter | 5.5mm |
Compliance
| RoHS | Not Compliant |
Datasheet
Deltron 333-0000 Datasheet
Download the complete datasheet for Deltron 333-0000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

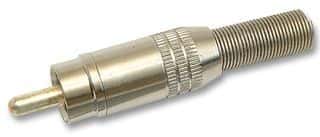

Product Images
