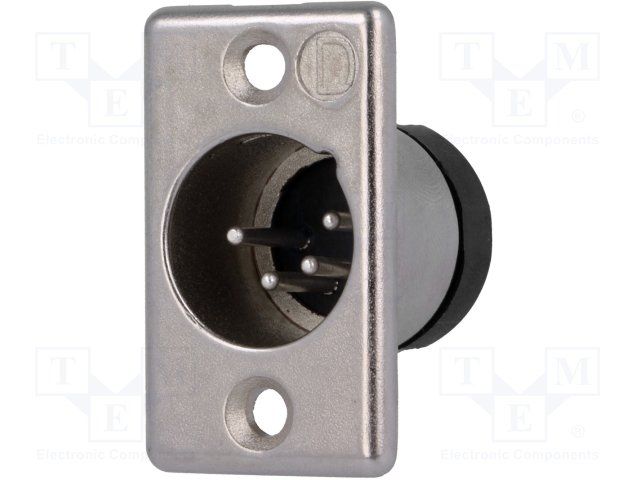

Four-pole male XLR panel plug with solder termination. Features a silver-colored metal body and case, with brass contacts plated in silver. Rated for 10A RMS current and 250V AC voltage. Operates within a temperature range of -30°C to 80°C and boasts a UL94 V-1 flammability rating. RoHS compliant.
PackageMetal
Voltage Rating250V
Current Rating10A
MountingPanel
Quick Jump:
Technical Specifications
Deltron 703-0400 technical specifications.
General
Body Material
Metal
Package/Case
Metal
Color
Silver
Contact Material
Brass
Contact Plating
Silver
Current Rating
10A
Flammability Rating
UL94 V-1
Gender
Male
Max Operating Temperature
80°C
Min Operating Temperature
-30°C
Mount
Panel
Number of Contacts
4
Number of Positions
4
Orientation
Vertical
Package Quantity
100
Plating
Nickel
Reach SVHC Compliant
Unknown
RMS Current (Irms)
10A
RoHS Compliant
Yes
Termination
Solder
Voltage Rating
250V
Voltage Rating (AC)
250V
Width
23.1mm
Working Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Deltron 703-0400 Datasheet
Download the complete datasheet for Deltron 703-0400 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
