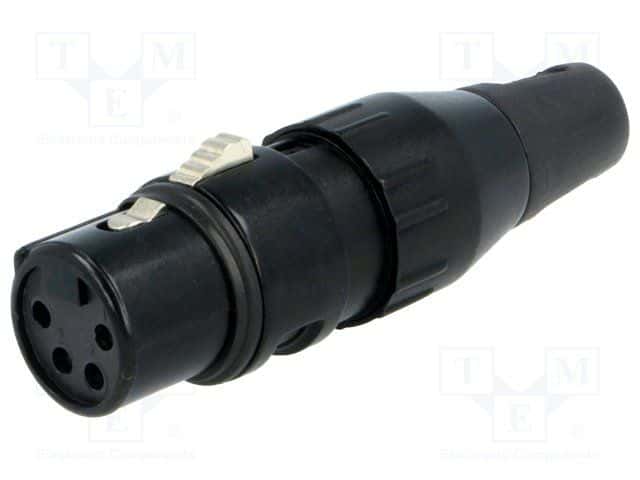

4-contact, female XLR audio connector for cable mounting. Features silver-plated brass contacts and a durable metal body with chrome plating. Rated for 10A RMS current and 250V AC voltage, with a maximum operating temperature of 80°C. Termination is via solder, and the body diameter is 19.8mm.
PackageMetal
Voltage Rating250V
Current Rating10A
MountingCable
Quick Jump:
Technical Specifications
Deltron 708-0400 technical specifications.
General
Body Diameter
19.8mm
Body Material
Metal
Body Plating
Chrome
Package/Case
Metal
Color
Black
Contact Material
Brass
Contact Plating
Silver
Current Rating
10A
Flammability Rating
UL94 V-1
Gender
Female
Material
Chrome
Max Operating Temperature
80°C
Min Operating Temperature
-30°C
Mount
Cable
Number of Contacts
4
Number of Positions
4
Orientation
Vertical
Package Quantity
100
Reach SVHC Compliant
Unknown
RMS Current (Irms)
10A
RoHS Compliant
No
Termination
Solder
Voltage Rating
250V
Voltage Rating (AC)
250V
Working Voltage
250V
Compliance
RoHS
Not Compliant
Datasheet
Deltron 708-0400 Datasheet
Download the complete datasheet for Deltron 708-0400 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
