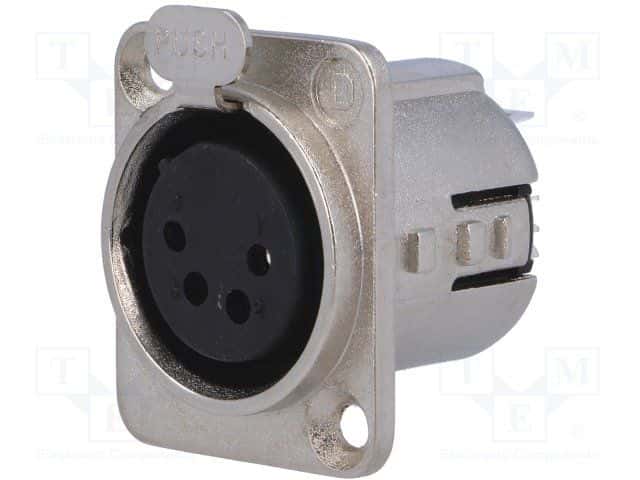

Four-pole female XLR socket for panel mounting. Features nickel-plated metal body and silver-plated brass contacts. Rated for 10A RMS current and 250V AC working voltage. Operates between -30°C and 80°C with a UL94 V-1 flammability rating. Solder termination.
PackageMetal
Voltage Rating250V
Current Rating10A
MountingPanel
Quick Jump:
Technical Specifications
Deltron 716-0400 technical specifications.
General
Body Material
Metal
Body Plating
Nickel
Package/Case
Metal
Color
Silver
Contact Material
Brass
Contact Plating
Silver
Current Rating
10A
Flammability Rating
UL94 V-1
Gender
Female
Max Operating Temperature
80°C
Min Operating Temperature
-30°C
Mount
Panel
Number of Contacts
4
Number of Positions
4
Orientation
Vertical
Plating
Nickel
Reach SVHC Compliant
Unknown
RMS Current (Irms)
10A
RoHS Compliant
No
Termination
Solder
Voltage Rating
250V
Voltage Rating (AC)
250V
Width
26mm
Working Voltage
250V
Compliance
RoHS
Not Compliant
Datasheet
Deltron 716-0400 Datasheet
Download the complete datasheet for Deltron 716-0400 to view detailed technical specifications.
