Demmel Products
DPP-CT8048
DEMMEL PRODUCTS DPP-CT8048 TFT LCD, 7 ", 800 x 480, WVGA, Landscape, RGB, 5V
PackageModule
Quick Jump:
Technical Specifications
Demmel Products DPP-CT8048 technical specifications.
General
Package/Case
Module
Interface
I2C, SPI, RS-232, USB
Max Operating Temperature
70°C
Min Operating Temperature
-20°C
Operating Supply Voltage
5V
Pixel Height
0.1905mm
Pixel Width
0.0635mm
Reach SVHC Compliant
No
Resolution (height)
480pixel
Resolution (width)
800pixel
Viewing Area (height)
91.44mm
Viewing Area (width)
152.4mm
Compliance
RoHS
Compliant
Datasheet
Demmel Products DPP-CT8048 Datasheet
Download the complete datasheet for Demmel Products DPP-CT8048 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

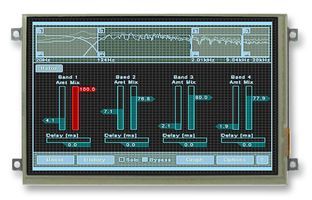

Product Images
