Green LED emitter, 565nm wavelength, with a 2.8V forward voltage and 20mA forward current. This through-hole component features a diffused, round, domed lens with a 3mm diameter and a 60° viewing angle, providing 12.6mcd luminous intensity. Operating from -55°C to 100°C, it has a 30mA current rating and 5V reverse voltage, packaged in bulk.
PackageRadial
Voltage Rating2.8V
Current Rating30mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Dialight 521-9210F technical specifications.
General
Package/Case
Radial
Color
Green
Current Rating
30mA
Depth
3.3mm
Diameter
3.3mm
Forward Current
20mA
Height
6mm
Illumination Color
Green
Length
3.3mm
Lens Color
Green
Lens Size
3mm
Lens Style
Round, Domed, Dome, Diffused
Lens Transparency
Diffused
Luminous Intensity
12.6mcd
Max Operating Temperature
100°C
Min Operating Temperature
-55°C
Mount
Through Hole
Number of Elements
1
Number of LEDs
1
Packaging
Bulk
Power Dissipation
100mW
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Voltage
5V
RoHS Compliant
Yes
Series
521
Viewing Angle
60°
Voltage Rating
2.8V
Wavelength
565nm
Compliance
RoHS
Compliant
Datasheet
Dialight 521-9210F Datasheet
Download the complete datasheet for Dialight 521-9210F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

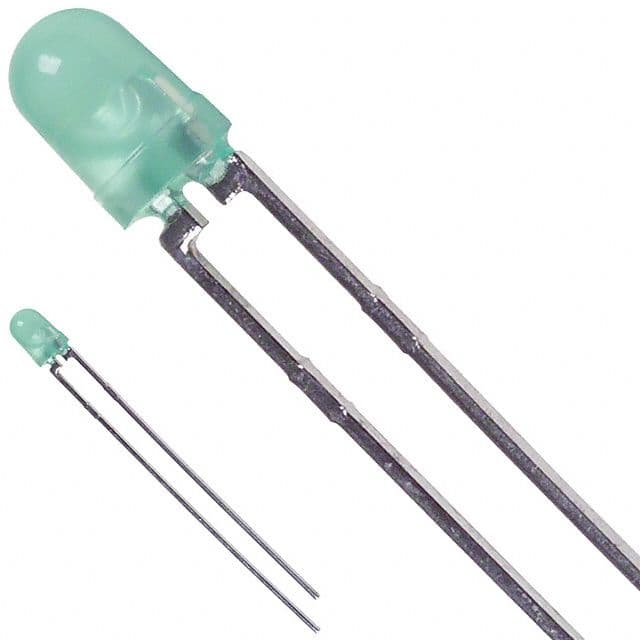

Product Images
