Red diffused T-1 3/4 (5mm) standard LED emitter with a 60° viewing angle and 655nm wavelength. Features 13mA forward current, 5V reverse voltage, and 7.5V operating supply voltage. This lead-free, RoHS compliant component offers 2mcd luminous intensity and operates within a -40°C to 85°C temperature range. Designed for through-hole mounting, it comes in bulk packaging.
Current13mA
Voltage Rating5V
MountingThrough Hole
Quick Jump:
Technical Specifications
Dialight 550-0507F technical specifications.
General
| Color | Red |
| Current | 13mA |
| Depth | 6.1mm |
| Forward Current | 13mA |
| Height | 6.1mm |
| Illumination Color | Red |
| Lead Free | Lead Free |
| Length | 6.1mm |
| Lens Color | Red |
| Lens Size | 3mm |
| Lens Style | Diffused, Round, Domed |
| Luminous Intensity | 2mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of LEDs | 1 |
| Operating Supply Voltage | 7.5V |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Voltage | 5V |
| RoHS Compliant | Yes |
| Series | 550 |
| Viewing Angle | 60° |
| Voltage Rating | 5V |
| Wavelength | 655nm |
| Width | 6.1mm |
Compliance
| RoHS | Compliant |
Datasheet
Dialight 550-0507F Datasheet
Download the complete datasheet for Dialight 550-0507F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

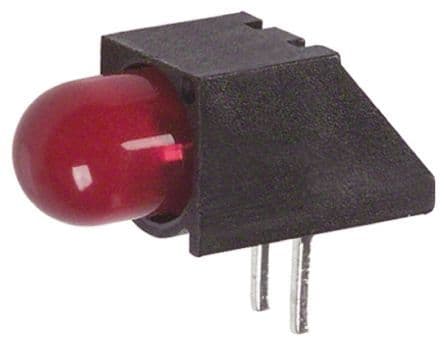

Product Images
