Blue LED emitter, through-hole mount, T-1 3/4 (5mm) package. Features 1 LED element with a 30° viewing angle, clear lens, and 470nm wavelength. Operates at 20mA forward current and 3.8V voltage rating, delivering 1000mcd luminous intensity. RoHS compliant, with a temperature range of -40°C to 80°C.
Current20mA
Voltage Rating3.8V
MountingThrough Hole
Power120mW
Quick Jump:
Technical Specifications
Dialight 550-1007F technical specifications.
General
| Color | Blue |
| Current | 20mA |
| Diameter | 5.21mm |
| Forward Current | 20mA |
| Height | 6.22mm |
| Illumination Color | Blue |
| Lead Free | Lead Free |
| Length | 14mm |
| Lens Style | Clear |
| Luminous Intensity | 1000mcd |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of LEDs | 1 |
| Packaging | Bulk |
| Power Dissipation | 120mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 550 |
| Viewing Angle | 30° |
| Voltage Rating | 3.8V |
| Wavelength | 470nm |
| Width | 6.22mm |
Compliance
| RoHS | Compliant |
Datasheet
Dialight 550-1007F Datasheet
Download the complete datasheet for Dialight 550-1007F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

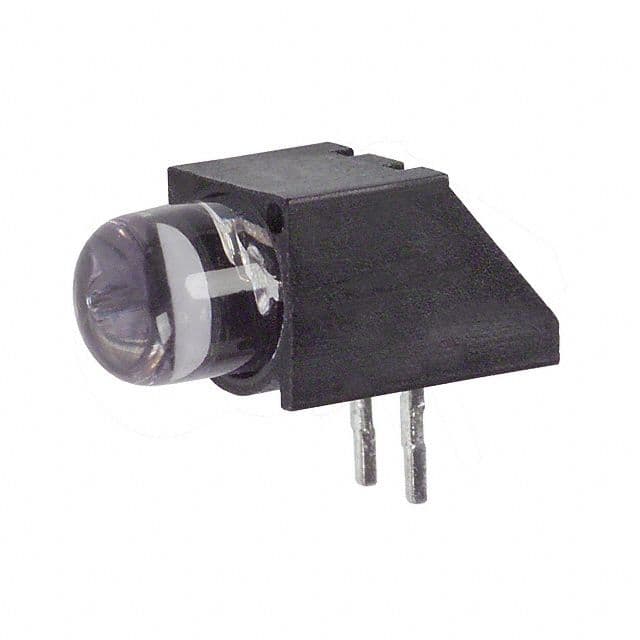

Product Images
