Red LED emitter, 650nm wavelength, 2.5V operating voltage, and 10mA forward current. Features a 3mm diffused, round, domed lens with a 50° viewing angle and 7mcd luminous intensity. This lead-free, RoHS-compliant component operates between -25°C and 85°C with a maximum power dissipation of 60mW. Designed for through-hole mounting, it is supplied in bulk packaging.
Current10mA
Voltage Rating2.2V
MountingThrough Hole
Power60mW
Quick Jump:
Technical Specifications
Dialight 550-2407F technical specifications.
General
| Color | Red |
| Current | 10mA |
| Depth | 6.1mm |
| Forward Current | 10mA |
| Height | 6.1mm |
| Illumination Color | Red |
| Lead Free | Lead Free |
| Length | 6.1mm |
| Lens Color | Red |
| Lens Size | 3mm |
| Lens Style | Diffused, Round, Domed, Circular |
| Luminous Intensity | 7mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Power Dissipation | 60mW |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of LEDs | 1 |
| Operating Supply Voltage | 2.5V |
| Package Quantity | 100 |
| Packaging | Bulk |
| Power Dissipation | 60mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Voltage | 5V |
| RoHS Compliant | Yes |
| Series | 550 |
| Viewing Angle | 50° |
| Voltage Rating | 2.2V |
| Wavelength | 650nm |
| Width | 6.1mm |
Compliance
| RoHS | Compliant |
Datasheet
Dialight 550-2407F Datasheet
Download the complete datasheet for Dialight 550-2407F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

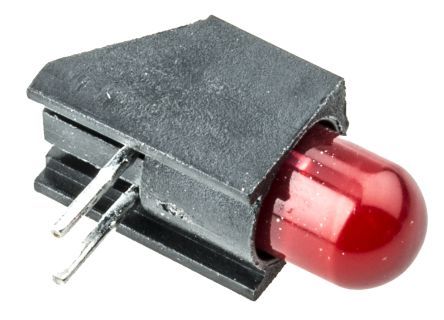

Product Images
