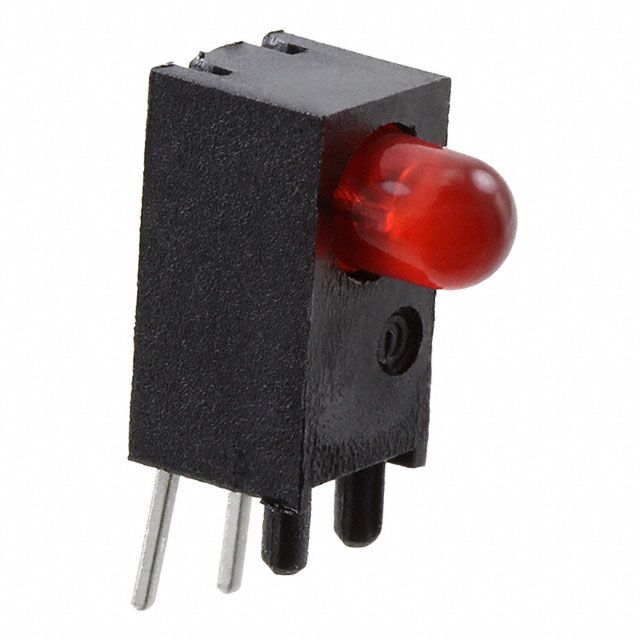

Single color red LED emitter, diffused, tinted, round, domed lens style with a 3mm lens size. Features a 45° viewing angle, 650nm wavelength, and 2V forward voltage. Operates with a 10mA forward current and 60mW power dissipation, with a maximum operating temperature of 85°C. Through-hole mount package, RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Dialight 551-0404F datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Dialight 551-0404F technical specifications.
| Color | Red |
| Current | 10mA |
| Depth | 3.6mm |
| Forward Current | 10mA |
| Height | 13.7mm |
| Illumination Color | Red |
| Length | 4.6mm |
| Lens Size | 3mm |
| Lens Style | Diffused, Tinted, Round, Domed, Colored |
| Luminous Intensity | 10mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of LEDs | 1 |
| Package Quantity | 100 |
| Packaging | Bulk |
| Power Dissipation | 60mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Voltage | 3V |
| RoHS Compliant | Yes |
| Series | 551 |
| Viewing Angle | 45° |
| Voltage Rating | 2V |
| Wavelength | 650nm |
| Width | 4.6mm |
| RoHS | Compliant |
