Single color red LED emitter, T-1 package, 3mm diffused, tinted, round, domed lens. Features a 2V forward voltage, 10mA forward current, and 650nm wavelength. Offers 10mcd luminous intensity with a 45° viewing angle. Through-hole mounting, right-angle orientation, and RoHS compliant. Operating temperature range of -25°C to 85°C.
Current10mA
Voltage Rating2V
MountingThrough Hole
Power60mW
Quick Jump:
Technical Specifications
Dialight 551-0407F technical specifications.
General
| Color | Red |
| Current | 10mA |
| Depth | 4.32mm |
| Forward Current | 10mA |
| Height | 7.11mm |
| Illumination Color | Red |
| Lead Free | Lead Free |
| Length | 8.89mm |
| Lens Color | Red |
| Lens Size | 3mm |
| Lens Style | Diffused, Tinted, Round, Domed, Dome |
| Luminous Intensity | 10mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of LEDs | 1 |
| Operating Supply Voltage | 2V |
| Orientation | Right Angle |
| Package Quantity | 100 |
| Packaging | Bulk |
| Power Dissipation | 60mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Voltage | 3V |
| RoHS Compliant | Yes |
| Series | 551 |
| Viewing Angle | 45° |
| Voltage Rating | 2V |
| Wavelength | 650nm |
| Weight | 0.035274oz |
| Width | 4.32mm |
Compliance
| RoHS | Compliant |
Datasheet
Dialight 551-0407F Datasheet
Download the complete datasheet for Dialight 551-0407F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

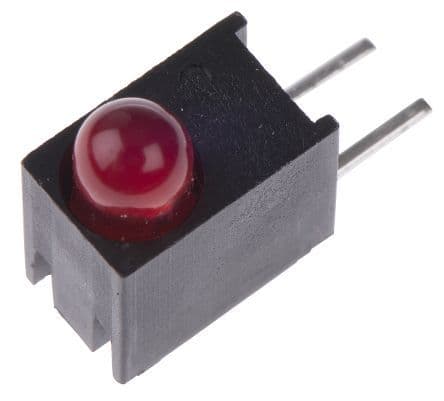

Product Images
