Green diffused T-1 (3mm) standard LED emitter with a 60° viewing angle and 565nm wavelength. Features 10mA forward current, 5V reverse voltage, and 19mcd luminous intensity. Operates between -20°C and 85°C, with a 7.5V operating supply voltage. Through-hole mounting with a tin terminal finish, this RoHS compliant component offers high reliability.
Current10mA
Voltage Rating5V
MountingThrough Hole, Radial
Quick Jump:
Technical Specifications
Dialight 551-0607F technical specifications.
General
Additional Feature
HIGH RELIABILITY
Color
Green
Current
10mA
Depth
8.89mm
Forward Current
10mA
Height
7.11mm
Illumination Color
Green
Lead Free
Lead Free
Length
4.32mm
Lens Color
Green
Lens Size
3mm
Lens Style
Diffused, Tinted, Round, Domed
Luminous Intensity
19mcd
Max Operating Temperature
85°C
Min Operating Temperature
-20°C
Mount
Through Hole, Radial
Number of Elements
1
Number of Functions
1
Number of LEDs
1
Operating Supply Voltage
7.5V
Package Quantity
100
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Voltage
5V
RoHS Compliant
Yes
Series
551
Shape
Round
T-code
T-1
Terminal Finish
Tin
Viewing Angle
60°
Voltage Rating
5V
Wavelength
565nm
Width
4.32mm
Compliance
RoHS
Compliant
Datasheet
Dialight 551-0607F Datasheet
Download the complete datasheet for Dialight 551-0607F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

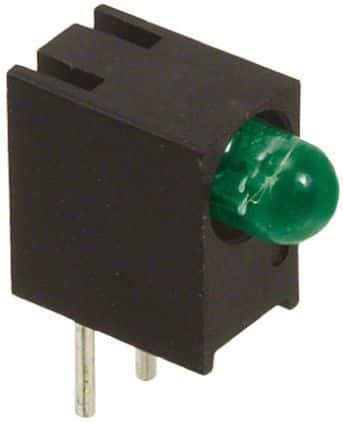

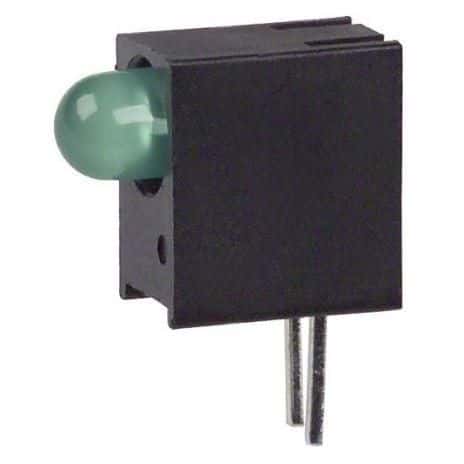

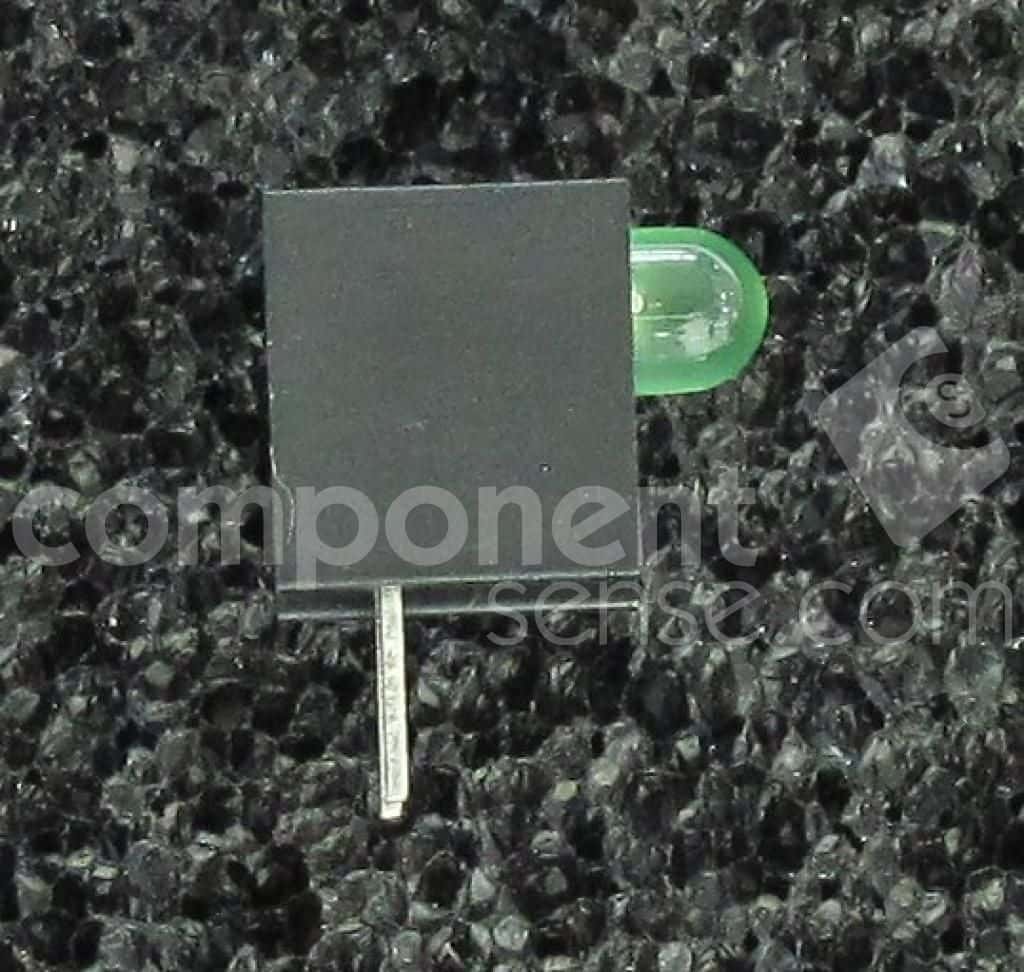

Product Images
