Dual element, through-hole mounted LED array emitting green light. Features a 3mm diffused, tinted, round, domed lens with a 60° viewing angle. Operates with a 2.2V forward voltage and 20mA forward current, delivering 1.6mcd luminous intensity at a 565nm wavelength. Rated for 20mW power dissipation and a wide operating temperature range from -55°C to 100°C. RoHS compliant.
Current20mA
Voltage Rating1.9V
MountingThrough Hole
Power20mW
Quick Jump:
Technical Specifications
Dialight 553-0222-200F technical specifications.
General
| Color | Green |
| Current | 20mA |
| Depth | 14.06mm |
| Forward Current | 2mA |
| Height | 9.65mm |
| Illumination Color | Green |
| Lead Free | Lead Free |
| Length | 4.32mm |
| Lens Size | 3mm |
| Lens Style | Diffused, Tinted, Round, Domed |
| Luminous Intensity | 1.6mcd |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Elements | 2 |
| Number of LEDs | 2 |
| Operating Supply Voltage | 2.2V |
| Packaging | Bulk |
| Power Dissipation | 20mW |
| Reach SVHC Compliant | No |
| Reverse Voltage | 5V |
| RoHS Compliant | Yes |
| Series | 553 |
| Viewing Angle | 60° |
| Voltage Rating | 1.9V |
| Wavelength | 565nm |
| Width | 4.32mm |
Compliance
| RoHS | Compliant |
Datasheet
Dialight 553-0222-200F Datasheet
Download the complete datasheet for Dialight 553-0222-200F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

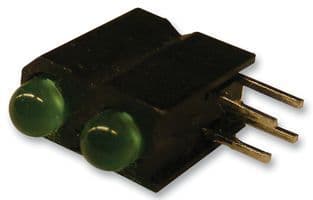

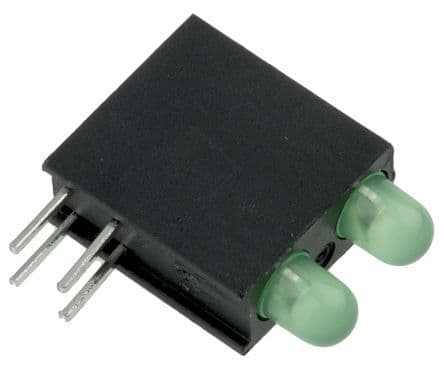

Product Images
