Single color red LED emitter, diffused, tinted, round, domed lens style with a 3mm lens size. Features a 40° viewing angle, 650nm wavelength, and 1.2mcd luminous intensity. Operates with a 2V forward voltage and 20mA forward current, with a maximum power dissipation of 80mW. Through-hole mount package, lead-free and RoHS compliant, with an operating temperature range of -55°C to 100°C.
Current50mA
Voltage Rating1.6V
MountingThrough Hole
Power80mW
Quick Jump:
Technical Specifications
Dialight 555-2001F technical specifications.
General
| Color | Red |
| Current | 50mA |
| Depth | 6.22mm |
| Forward Current | 20mA |
| Height | 6.35mm |
| Illumination Color | Red |
| Lead Free | Lead Free |
| Length | 2.54mm |
| Lens Color | Red |
| Lens Size | 3mm |
| Lens Style | Diffused, Tinted, Round, Domed |
| Luminous Intensity | 1.2mcd |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of LEDs | 1 |
| Operating Supply Voltage | 2V |
| Package Quantity | 100 |
| Packaging | Bulk |
| Power Dissipation | 80mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Voltage | 3V |
| RoHS Compliant | Yes |
| Series | 555 |
| Viewing Angle | 40° |
| Voltage Rating | 1.6V |
| Wavelength | 650nm |
| Width | 2.54mm |
Compliance
| RoHS | Compliant |
Datasheet
Dialight 555-2001F Datasheet
Download the complete datasheet for Dialight 555-2001F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

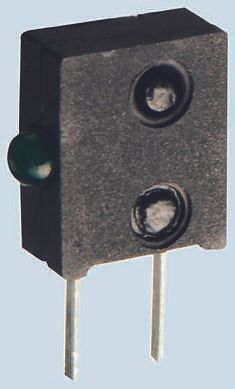

Product Images
