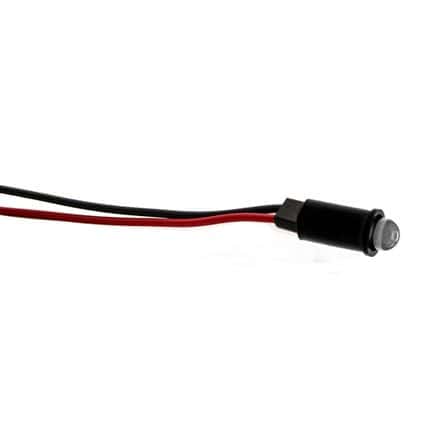

Dual color LED emitter, featuring red and green illumination. This T-1 3/4, 5mm standard LED has a diffused, domed lens style and a 65° viewing angle. It operates with a forward current of 30mA and a voltage of 2.1V, with a reverse voltage rating of 5V. The component is lead-free, RoHS compliant, and rated for operation between -20°C and 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Dialight 559-3501-007F datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL |
| Color | Green, Red |
| Current | 30mA |
| Current Rating | 10mA |
| Depth | 6.35mm |
| Forward Current | 30mA |
| Illumination Color | Green, Red |
| Lead Free | Lead Free |
| Lead Length | 12.7mm |
| Length | 6.35mm |
| Lens Color | Green, Red |
| Lens Size | 5mm |
| Lens Style | Round, Domed, Dome, Diffused, Colorless |
| Lens Transparency | Diffused |
| Luminous Intensity | 5mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Mount | Snap in, Front |
| Number of Elements | 2 |
| Number of LEDs | 2 |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Voltage | 5V |
| RoHS Compliant | Yes |
| Series | 559 |
| Termination | Wire Leads |
| Viewing Angle | 65° |
| Voltage | 2.1V |
| DC Rated Voltage | 2.3V |
| Weight | 0.141096oz |
| RoHS | Compliant |
