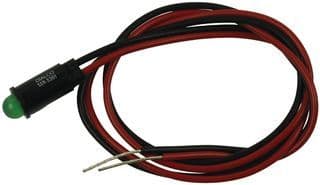

Green LED panel mount indicator featuring a 5mm diffused, domed lens. Emitting at 563nm, this uni-color indicator provides 34mcd luminous intensity with a 50° viewing angle. It operates at a 2.2V forward voltage and 20mA forward current, with a maximum operating temperature of 85°C. The component is lead-free, RoHS compliant, and mounts via a snap-in front panel design with wire lead terminations.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Dialight 559-5201-007F datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Dialight 559-5201-007F technical specifications.
| Approvals | UL |
| Color | Green |
| Current | 25mA |
| Current Rating | 20mA |
| Depth | 6.35mm |
| Forward Current | 25mA |
| Illumination Color | Green |
| Lead Free | Lead Free |
| Length | 6.35mm |
| Lens Color | Green |
| Lens Size | 5mm |
| Lens Style | Round, Domed, Dome, Diffused |
| Lens Transparency | Diffused |
| Luminous Intensity | 34mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Mount | Snap in, Front |
| Number of Elements | 1 |
| Number of LEDs | 1 |
| Operating Supply Voltage | 2.2V |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 559 |
| Termination | Wire Leads |
| Viewing Angle | 50° |
| Voltage | 2.2V |
| Voltage Rating | 2.2V |
| DC Rated Voltage | 2.2V |
| Wavelength | 563nm |
| RoHS | Compliant |
