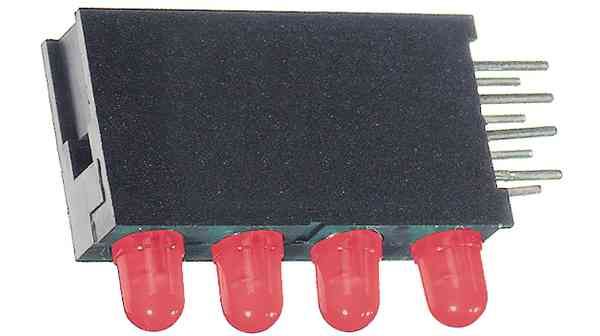

Red, single-color LED array featuring four elements in a T-1, 3mm package. This through-hole mount component offers a 60° viewing angle and a 2.1V forward voltage. It operates at a 10mA forward current with a maximum power dissipation of 100mW and a 5V reverse voltage. The diffused, domed, red lens is 5mm in size, and the unit is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Dialight 568-0101-111F datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Dialight 568-0101-111F technical specifications.
| Package/Case | 0101 |
| Color | Red |
| Current | 10mA |
| Depth | 4.32mm |
| Forward Current | 10mA |
| Height | 20.32mm |
| Illumination Color | Red |
| Lead Free | Lead Free |
| Length | 14.35mm |
| Lens Color | Red |
| Lens Size | 5mm |
| Lens Style | Round, Domed, Diffused, Colored |
| Luminous Intensity | 10mcd |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Contacts | 8 |
| Number of Elements | 4 |
| Number of LEDs | 4 |
| Package Quantity | 5 |
| Packaging | Bulk |
| Power Dissipation | 100mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Voltage | 5V |
| RoHS Compliant | Yes |
| Series | 568 |
| Viewing Angle | 60° |
| Voltage Rating | 2.1V |
| DC Rated Voltage | 2.2V |
| Wavelength | 635nm |
| Width | 4.32mm |
| RoHS | Compliant |
