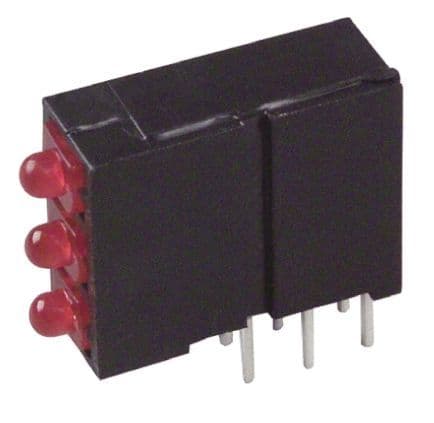

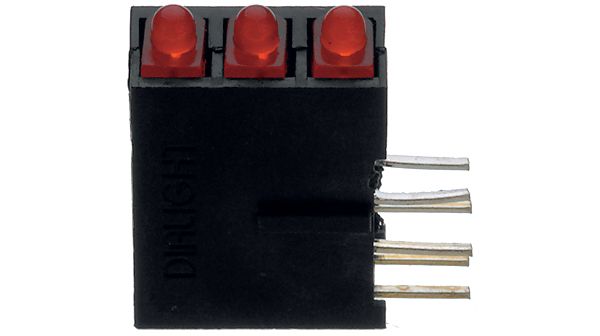

Red diffused T-3/4 LED array featuring three elements with a 5mm diffused, tinted, round, domed lens. This through-hole mount component operates at 20mA with a forward current of 30mA and a typical forward voltage of 2.5V. Delivering 12.6mcd luminous intensity at a 635nm wavelength and a 38° viewing angle, it offers a wide operating temperature range from -55°C to 100°C. The RoHS compliant package contains 6 contacts and is suitable for applications requiring a 5V reverse voltage and 100mW power dissipation.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Dialight 570-0100-111F datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Color | Red |
| Current | 20mA |
| Depth | 14.37mm |
| Forward Current | 30mA |
| Height | 10.16mm |
| Illumination Color | Red |
| Lead Free | Lead Free |
| Length | 5.08mm |
| Lens Color | Red |
| Lens Size | 5mm |
| Lens Style | Diffused, Tinted, Round, Domed |
| Luminous Intensity | 12.6mcd |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Contacts | 6 |
| Number of Elements | 3 |
| Number of LEDs | 3 |
| Operating Supply Voltage | 2.5V |
| Packaging | Bulk |
| Power Dissipation | 100mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Voltage | 5V |
| RoHS Compliant | Yes |
| Series | 570 |
| Viewing Angle | 38° |
| Voltage Rating | 2V |
| Wavelength | 635nm |
| Width | 5.08mm |
| RoHS | Compliant |
