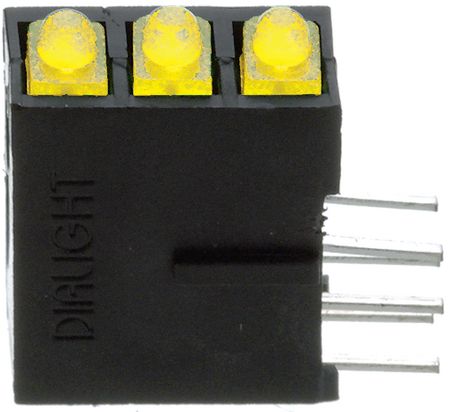

Single Color LED Array, Yellow, Diffused, T-3/4, 1.81mm, ROHS COMPLIANT PACKAGE-6. This through-hole mounted LED emitter features three yellow elements with a diffused, tinted, round, domed lens measuring 5mm. Operating at a forward current of 20mA, it provides a luminous intensity of 12.6mcd at a wavelength of 590nm and a voltage rating of 2.1V. The array has a power dissipation of 60mW and a viewing angle of 38°, with a maximum reverse voltage of 5V. It is RoHS compliant and operates within a temperature range of -55°C to 100°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Dialight 570-0100-333F datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Dialight 570-0100-333F technical specifications.
| Color | Yellow |
| Current | 20mA |
| Depth | 14.37mm |
| Forward Current | 20mA |
| Height | 10.16mm |
| Illumination Color | Yellow |
| Lead Free | Lead Free |
| Length | 5.08mm |
| Lens Color | Yellow |
| Lens Size | 5mm |
| Lens Style | Diffused, Tinted, Round, Domed, Colored |
| Luminous Intensity | 12.6mcd |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Contacts | 6 |
| Number of Elements | 3 |
| Number of LEDs | 3 |
| Packaging | Bulk |
| Power Dissipation | 60mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Voltage | 5V |
| RoHS Compliant | Yes |
| Series | 570 |
| Viewing Angle | 38° |
| Voltage Rating | 2.1V |
| Wavelength | 590nm |
| Width | 5.08mm |
| RoHS | Compliant |
