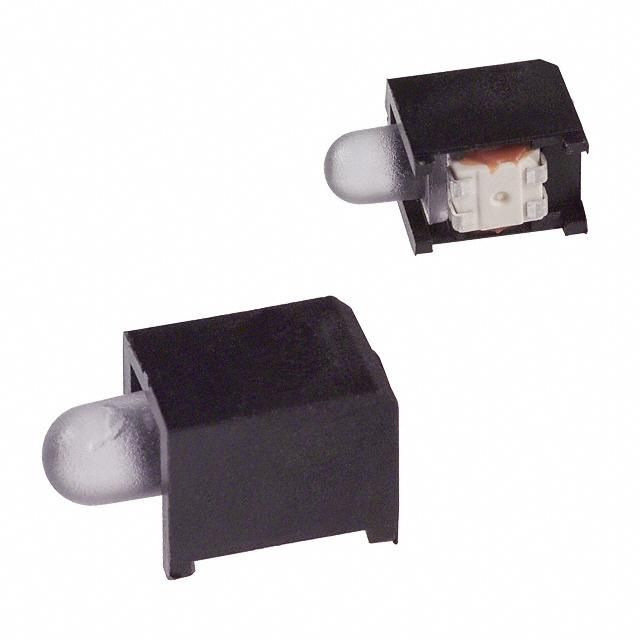

Surface mountable single color green LED emitter with a 50° viewing angle. Features a 1.8V forward voltage, 20mA forward current, and 570nm wavelength. Offers 22mcd luminous intensity, a 3mm round domed lens, and operates within a -40°C to 100°C temperature range. Packaged on tape and reel, this RoHS compliant component has a power dissipation of 50mW and a 12V reverse voltage rating.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Dialight 591-2304-013F datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Dialight 591-2304-013F technical specifications.
| Package/Case | SMD/SMT |
| Color | Green |
| Current | 2mA |
| Depth | 4.32mm |
| Forward Current | 20mA |
| Illumination Color | Green |
| Length | 8.2mm |
| Lens Color | Green |
| Lens Size | 3mm |
| Lens Style | Round, Domed |
| Luminous Intensity | 22mcd |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of LEDs | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 50mW |
| Radiation Hardening | No |
| Reverse Voltage | 12V |
| RoHS Compliant | Yes |
| Series | 591 |
| Viewing Angle | 50° |
| Voltage Rating | 1.8V |
| Wavelength | 570nm |
| Width | 4.33mm |
| RoHS | Compliant |
