Dual color LED emitter featuring two elements, emitting both green and red light. Surface mountable with a T-1 package size (2.84mm diameter) and a 3mm diffused, flat, domed lens. Operates with a 30mA forward current and a 2V voltage rating, offering a luminous intensity of 6.5mcd and a 40° viewing angle. This RoHS compliant component has a wide operating temperature range from -55°C to 100°C.
PackageSMD/SMT
Voltage Rating2V
MountingSurface Mount
Power100mW
Quick Jump:
Technical Specifications
Dialight 591-3001-013F technical specifications.
General
| Package/Case | SMD/SMT |
| Color | Green, Red |
| Depth | 8.8mm |
| Forward Current | 30mA |
| Height | 5mm |
| Illumination Color | Green, Red |
| Lead Free | Lead Free |
| Length | 4.3mm |
| Lens Size | 3mm |
| Lens Style | Round, Flat, Domed, Diffused |
| Luminous Intensity | 6.5mcd |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Elements | 2 |
| Number of LEDs | 1 |
| Package Quantity | 1600 |
| Packaging | Tape and Reel |
| Power Dissipation | 100mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Voltage | 5V |
| RoHS Compliant | Yes |
| Series | 591 |
| Viewing Angle | 40° |
| Voltage Rating | 2V |
| Wavelength | 570nm |
| Width | 4.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Dialight 591-3001-013F Datasheet
Download the complete datasheet for Dialight 591-3001-013F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

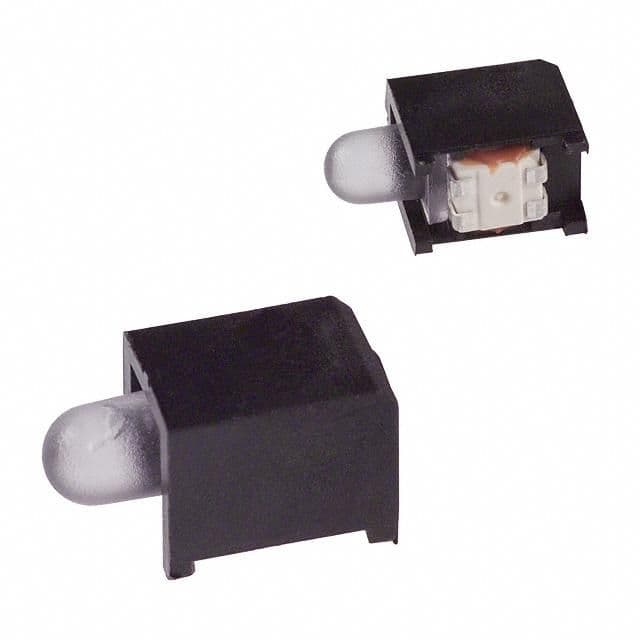

Product Images
