Surface mount dual color LED array featuring four elements, emitting green and yellow illumination. This component operates at a forward current of 30mA with a voltage rating of 2V and a reverse voltage of 12V. It boasts a 40° viewing angle and a luminous intensity of 2mcd. The LED emitter is housed in an SMD/SMT package with a round, domed lens measuring 3mm. Operating within a temperature range of -40°C to 100°C, this RoHS compliant product is supplied on tape and reel.
PackageSMD/SMT
Current30mA
Voltage Rating2V
MountingSurface Mount
Quick Jump:
Technical Specifications
Dialight 592-3131-313F technical specifications.
General
| Package/Case | SMD/SMT |
| Color | Green, Red, Yellow |
| Current | 30mA |
| Depth | 4.57mm |
| Forward Current | 30mA |
| Illumination Color | Green, Yellow |
| Length | 16.89mm |
| Lens Size | 3mm |
| Lens Style | Round, Domed |
| Luminous Intensity | 2mcd |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Moisture Sensitivity Level | 2 |
| Mount | Surface Mount |
| Number of Elements | 4 |
| Number of LEDs | 4 |
| Packaging | Tape and Reel |
| Power Dissipation | 95mW |
| Radiation Hardening | No |
| Reverse Voltage | 12V |
| RoHS Compliant | Yes |
| Series | 592 |
| Viewing Angle | 40° |
| Voltage Rating | 2V |
| Wavelength | 590nm |
Compliance
| RoHS | Compliant |
Datasheet
Dialight 592-3131-313F Datasheet
Download the complete datasheet for Dialight 592-3131-313F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

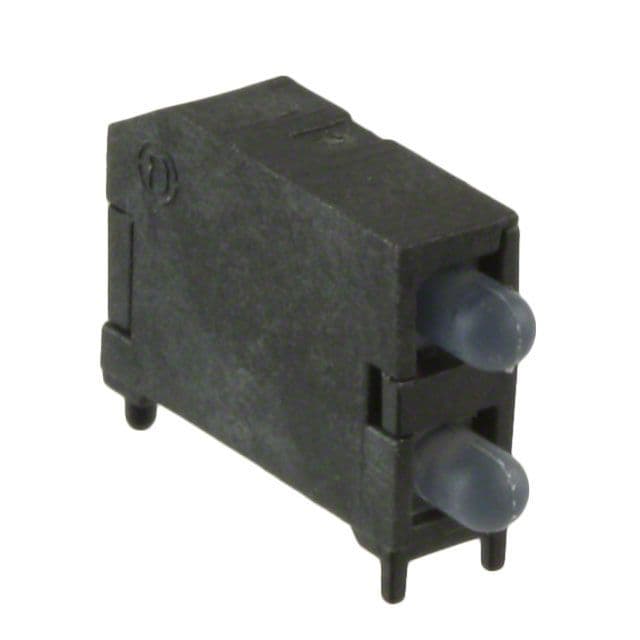

Product Images
