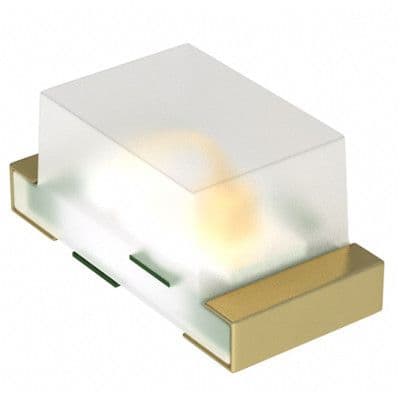

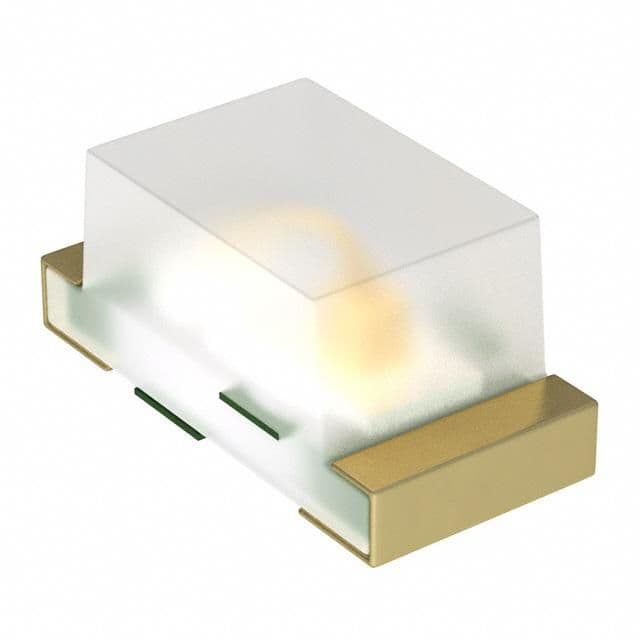

Surface mount, single-element red LED emitter with a diffused white lens. Features a 0603 (1608 metric) package, 1.6mm length, 0.8mm width, and 0.7mm height. Operates with a 20mA forward current and 1.7V DC rated voltage, producing 11.7mcd luminous intensity at a 660nm wavelength. This RoHS compliant component offers a wide 152° viewing angle and operates between -30°C and 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Dialight 597-5112-407F datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Color | Red |
| Depth | 0.8mm |
| Forward Current | 20mA |
| Height | 0.7mm |
| Illumination Color | Red |
| Input Current | 20mA |
| Lead Free | Lead Free |
| Length | 1.6mm |
| Lens Color | White |
| Lens Size | 0.8mm |
| Lens Style | Flat, Rectangular, Diffused |
| Lens Transparency | Diffused |
| Luminous Intensity | 11.7mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of LEDs | 1 |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Power Dissipation | 57.5mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 597 |
| Viewing Angle | 152° |
| DC Rated Voltage | 1.7V |
| Wavelength | 660nm |
| Width | 0.8mm |
| RoHS | Compliant |
