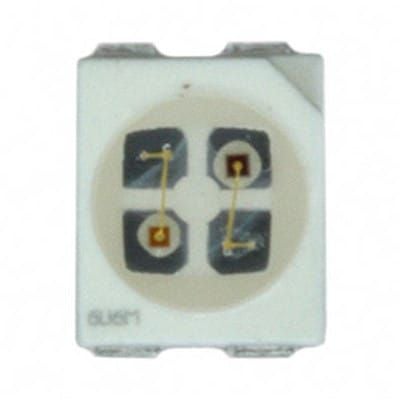

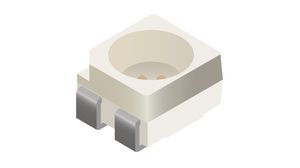

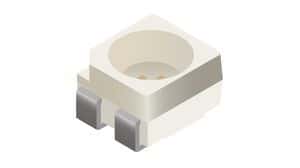

Dual color LED emitter featuring two elements, red and green, in a water clear PLCC package. Surface mountable with a 2.39mm lens size, offering a 120° viewing angle. Operates with a 20mA input current and 2V DC rated voltage, delivering 16mcd luminous intensity. RoHS compliant with a maximum power dissipation of 100mW and operating temperature range of -55°C to 100°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Dialight 597-7701-207F datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Dialight 597-7701-207F technical specifications.
| Package/Case | PLCC |
| Color | Green, Red |
| Depth | 3.2mm |
| Forward Current | 30mA |
| Height | 1.9mm |
| Illumination Color | Green, Red |
| Input Current | 20mA |
| Lead Free | Lead Free |
| Length | 2.79mm |
| Lens Color | Colorless |
| Lens Size | 2.39mm |
| Lens Style | Round, Flat, Diffused |
| Lens Transparency | Clear |
| Luminous Intensity | 16mcd |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Elements | 2 |
| Number of LEDs | 2 |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Power Dissipation | 100mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Voltage | 5V |
| RoHS Compliant | Yes |
| Series | microLED® |
| Viewing Angle | 120° |
| Voltage | 21V |
| DC Rated Voltage | 2V |
| Wavelength | 565nm |
| Width | 2.7mm |
| RoHS | Compliant |
