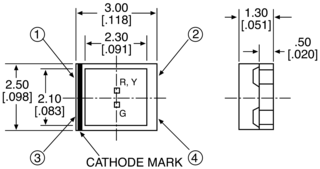

Dual color LED emitter featuring red and green illumination. Surface mount package with a 2.3mm size, 2.5mm width, 3mm length, and 1.3mm height. Operates with a 25mA forward current and 2.2V DC rated voltage, offering 30mcd luminous intensity at a 104° viewing angle. Water clear, diffused, flat rectangular lens with colorless transparency. ROHS compliant, lead-free, and rated for -30°C to 85°C operating temperature.
PackageSMD/SMT
MountingSurface Mount
Power60mW
Quick Jump:
Technical Specifications
Dialight 597-7701-507F technical specifications.
General
| Package/Case | SMD/SMT |
| Color | Green, Red |
| Depth | 2.5mm |
| Forward Current | 25mA |
| Height | 1.3mm |
| Illumination Color | Green, Red |
| Input Current | 20mA |
| Lead Free | Lead Free |
| Length | 3mm |
| Lens Color | Colorless |
| Lens Size | 2.1mm |
| Lens Style | Flat, Rectangular, Diffused |
| Lens Transparency | Clear |
| Luminous Intensity | 30mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Mount | Surface Mount |
| Number of Elements | 2 |
| Number of LEDs | 2 |
| Packaging | Tape and Reel |
| Power Dissipation | 60mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 597 |
| Viewing Angle | 104° |
| DC Rated Voltage | 2.2V |
| Wavelength | 570nm |
| Width | 2.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Dialight 597-7701-507F Datasheet
Download the complete datasheet for Dialight 597-7701-507F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

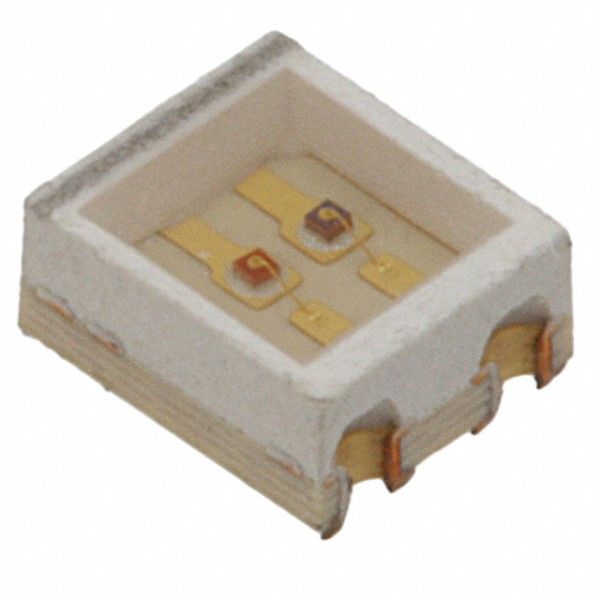

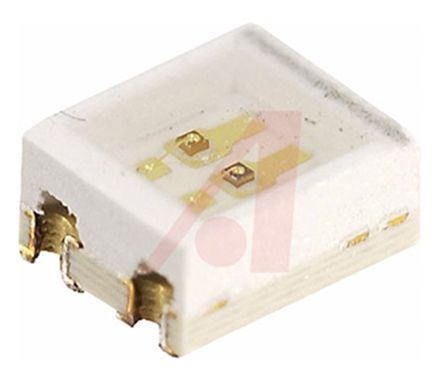

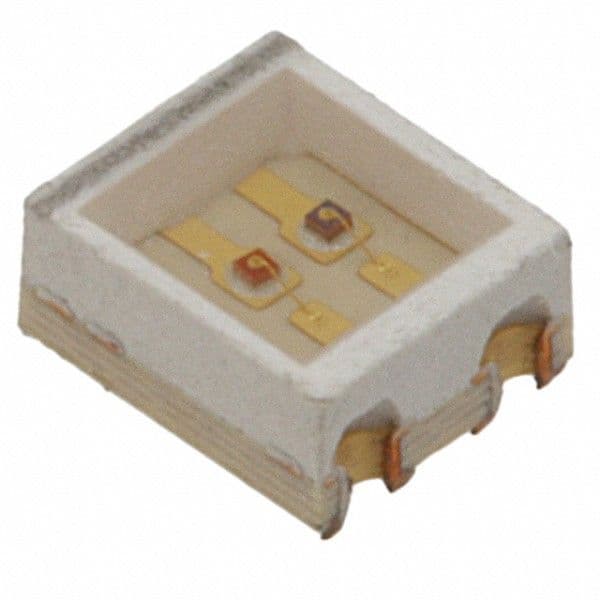

Product Images
