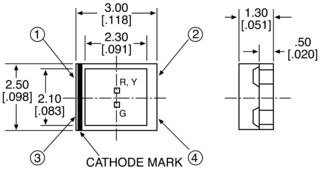

Dual color LED emitter featuring green and yellow illumination. Surface mount component with a 1210 package size, measuring 3mm in length, 2.5mm in width, and 1.3mm in height. Offers a 2.2V DC rated voltage and 25mA forward current, with a typical luminous intensity of 10mcd. Water clear, diffused, flat lens style with a 100° viewing angle. Operates within a -30°C to 80°C temperature range and is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Dialight 597-7721-507F datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Dialight 597-7721-507F technical specifications.
| Package/Case | 1210 |
| Color | Green, Yellow |
| Depth | 2.5mm |
| Forward Current | 25mA |
| Height | 1.3mm |
| Illumination Color | Green, Yellow |
| Input Current | 20mA |
| Lead Free | Lead Free |
| Length | 3mm |
| Lens Color | Colorless |
| Lens Size | 2.1mm |
| Lens Style | Flat, Rectangular, Diffused |
| Lens Transparency | Clear |
| Luminous Intensity | 10mcd |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -30°C |
| Mount | Surface Mount |
| Number of Elements | 2 |
| Number of LEDs | 2 |
| Packaging | Tape and Reel |
| Power Dissipation | 60mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 597 |
| Viewing Angle | 100° |
| DC Rated Voltage | 2.2V |
| Width | 2.5mm |
| RoHS | Compliant |
