598-8191-107F

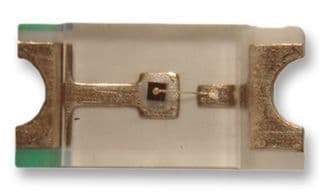

Blue SMD LED, 0805, 475nm, 140mcd, 20mA

Surface mount, single-element blue LED emitter in an 0805 (2012 metric) package. Features a water clear, diffused lens with a 140° viewing angle and 140mcd luminous intensity. Operates with a 20mA forward current and 5V reverse voltage, with a power dissipation of 87.5mW. Dimensions include 2mm length, 1.25mm width, and 0.8mm height. RoHS compliant and lead-free, suitable for operation between -30°C and 85°C.

Package0805

MountingSurface Mount

Power87.5mW

Quick Jump:

Technical Specifications

Dialight 598-8191-107F technical specifications.

General

Case Code (Imperial)	0805
Case Code (Metric)	2012
Package/Case	0805
Color	Blue
Depth	1.25mm
Forward Current	20mA
Height	0.8mm
Illumination Color	Blue
Lead Free	Lead Free
Length	2mm
Lens Color	Colorless, Clear
Lens Size	1.25mm
Lens Style	Flat, Rectangular, Diffused, Colorless, Clear, WATER CLEAR
Lens Transparency	Clear
Luminous Intensity	140mcd
Max Operating Temperature	85°C
Min Operating Temperature	-30°C
Mount	Surface Mount
Number of Elements	1
Number of LEDs	1
Package Quantity	3000
Packaging	Tape and Reel
Power Dissipation	87.5mW
Radiation Hardening	No
Reach SVHC Compliant	Unknown
Reverse Voltage	5V
RoHS Compliant	Yes
Series	598
Viewing Angle	140°
Wavelength	475nm
Width	1.25mm
