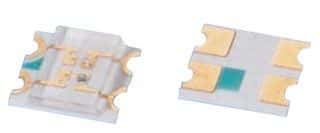

Surface mount RGB LED emitter featuring a 1210 (3225 metric) case code. Delivers luminous intensity of 90mcd with a 140° viewing angle. Operates with a 20mA forward current and 5V reverse voltage. Each unit contains three LEDs with a 645nm wavelength, presented in a clear, diffused, flat lens style. Designed for operation between -40°C and 100°C, this RoHS compliant component is supplied in cut tape packaging.
Package1210
MountingSurface Mount
Quick Jump:
Technical Specifications
Dialight 598-8610-302F technical specifications.
General
| Case Code (Imperial) | 1210 |
| Case Code (Metric) | 3225 |
| Package/Case | 1210 |
| Color | Blue, Green, Red |
| Forward Current | 20mA |
| Height | 0.7mm |
| Length | 3.2mm |
| Lens Color | Colorless, Clear |
| Lens Size | 1.3mm |
| Lens Style | Flat, Clear, Diffused, Colorless |
| Lens Transparency | Clear |
| Luminous Intensity | 90mcd |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of LEDs | 3 |
| Package Quantity | 20 |
| Packaging | Cut Tape |
| Reverse Voltage | 5V |
| RoHS Compliant | Yes |
| Series | 598 |
| Viewing Angle | 140° |
| Wavelength | 645nm |
| Width | 2.7mm |
Compliance
| RoHS | Compliant |
Datasheet
Dialight 598-8610-302F Datasheet
Download the complete datasheet for Dialight 598-8610-302F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
