Bi-color LED panel mount indicator featuring green and red illumination. This 3-pin indicator offers a forward current of 15mA and a DC rated voltage of 2V. Luminous intensity is rated at 35mcd for the red illumination and 18mcd for the green. The unit is RoHS compliant, lead-free, and designed for panel mounting with a round, flat, dome lens style. Operating temperature range is -25°C to 85°C.
Voltage2V
Current10mA
Voltage Rating2V
Current Rating10mA
Quick Jump:
Technical Specifications
Dialight 606-2415-110F technical specifications.
General
| Color | Green, Red |
| Current | 10mA |
| Current Rating | 10mA |
| Depth | 6.86mm |
| Forward Current | 15mA |
| Illumination Color | Green, Red |
| Lead Free | Lead Free |
| Length | 6.86mm |
| Lens Color | Green, Red |
| Lens Style | Round, Flat, Dome |
| Luminous Intensity | 35mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | Panel |
| Number of Elements | 2 |
| Number of LEDs | 2 |
| Package Quantity | 25 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 606 |
| Termination | Wire |
| Voltage | 2V |
| Voltage Rating | 2V |
| DC Rated Voltage | 2V |
Compliance
| RoHS | Compliant |
Datasheet
Dialight 606-2415-110F Datasheet
Download the complete datasheet for Dialight 606-2415-110F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

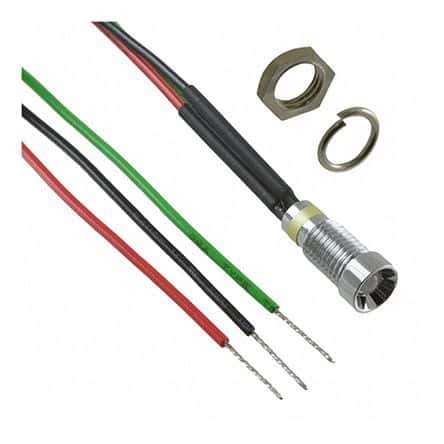

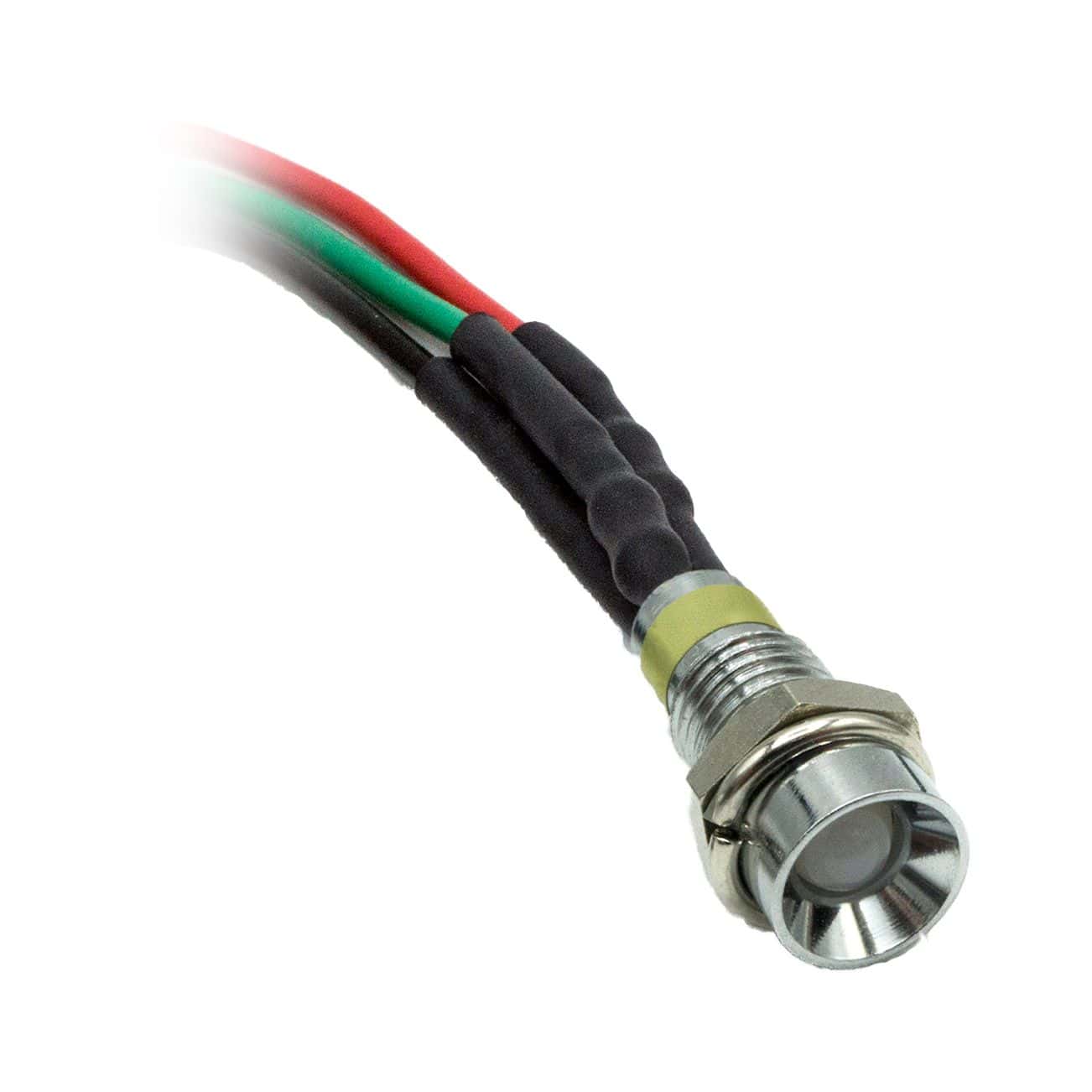

Product Images
