ARM-based System on Module (SOM) featuring 8MB RAM and 55MHz frequency. This module offers serial and Ethernet interfaces, with a data rate of 230Kbps. Designed for through-hole mounting, it operates from a 3.3V supply and supports NOR, FLASH, and SDRAM memory types. The module has a compact footprint with dimensions of 36.703mm length, 19.05mm width, and 21.69mm height, functioning across a -40°C to 85°C temperature range.
Frequency55MHz
PackageModule
MountingThrough Hole
Power891mW
Quick Jump:
Technical Specifications
Digi International DC-ME-01T-S technical specifications.
General
Package/Case
Module
Core Architecture
ARM
Data Rate
230Kbps
Density
2000000B
Frequency
55MHz
Height
21.69mm
Interface
Serial, Ethernet
Lead Free
Lead Free
Length
36.703mm
Max Operating Temperature
85°C
Max Output Current
270mA
Memory Type
NOR, FLASH, SDRAM
Min Operating Temperature
-40°C
Mount
Through Hole
Nominal Supply Current
250mA
Number of Contacts
8
Operating Supply Current
270mA
Operating Supply Voltage
3.3V
Orientation
Right Angle
Package Quantity
1
Packaging
Bulk
Power Consumption
891mW
Radiation Hardening
No
RAM Size
8MB
Reach SVHC Compliant
Unknown
Series
Digi Connect ME®
Termination
Solder
Width
19.05mm
Compliance
RoHS
Compliant
Datasheet
Digi International DC-ME-01T-S Datasheet
Download the complete datasheet for Digi International DC-ME-01T-S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

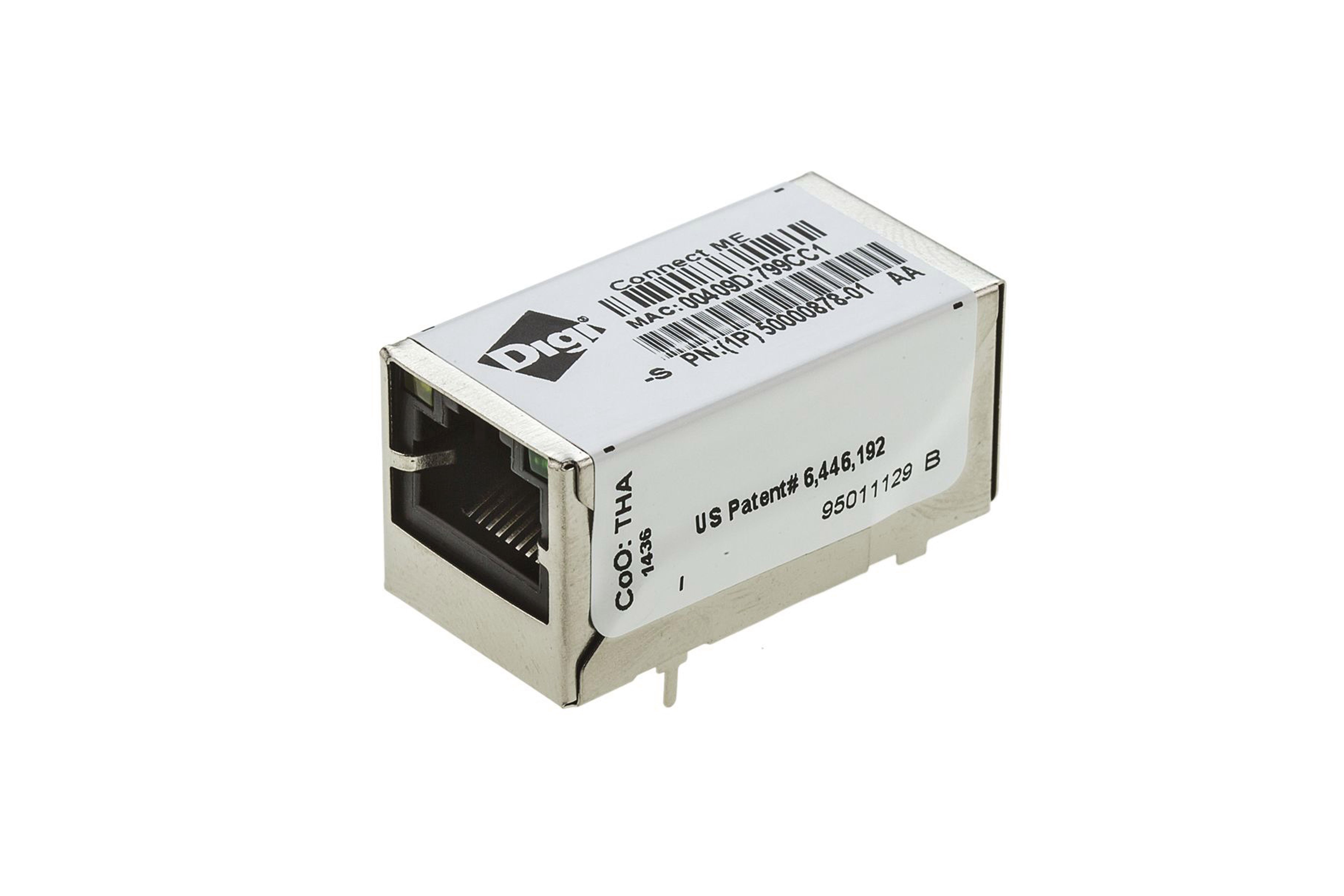

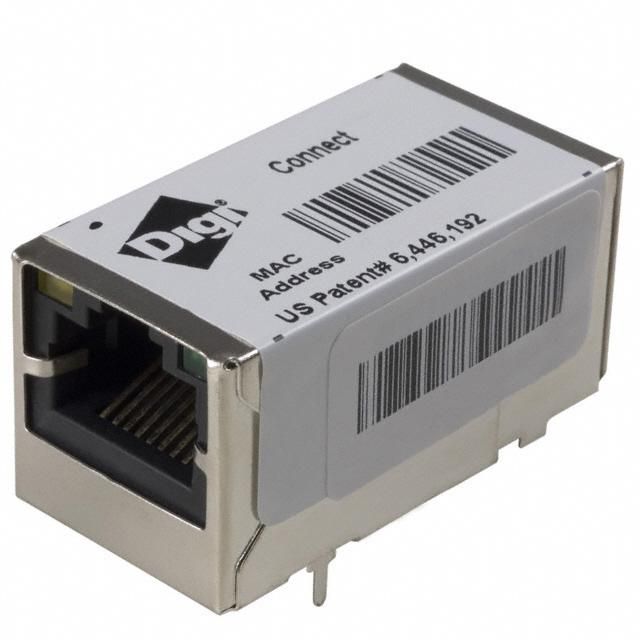

Product Images
