High-performance ARM System on Module (SOM) featuring a 75MHz core frequency. This ultra-compact module offers 8MB RAM and supports NOR, FLASH, and SDRAM memory types. Connectivity includes I2C, SPI, Ethernet (100Mbps), and GPIO interfaces. Operating at 3.3V, it functions within a -40°C to 80°C temperature range with a typical power consumption of 825mW. The module's dimensions are 36.7mm length, 19.05mm width, and 18.67mm height.
Frequency75MHz
PackageModule
Power825mW
Quick Jump:
Technical Specifications
Digi International DC-ME-Y402-C technical specifications.
General
Package/Case
Module
Core Architecture
ARM
Data Rate
100Mbps
Frequency
75MHz
Height
18.67mm
Interface
I2C, SPI, Ethernet, GPIO
Lead Free
Lead Free
Length
36.7mm
Max Operating Temperature
80°C
Memory Type
NOR, FLASH, SDRAM
Min Operating Temperature
-40°C
Max Output Current
346mA
Operating Supply Voltage
3.3V
Package Quantity
1
Packaging
Bulk
Power Consumption
825mW
RAM Size
8MB
Reach SVHC Compliant
Unknown
Series
Digi Connect ME®
Width
19.05mm
Compliance
RoHS
Compliant
Datasheet
Digi International DC-ME-Y402-C Datasheet
Download the complete datasheet for Digi International DC-ME-Y402-C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

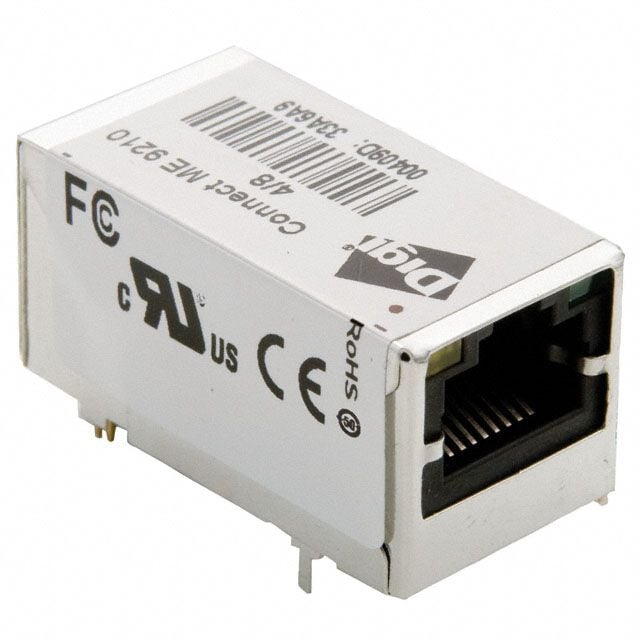

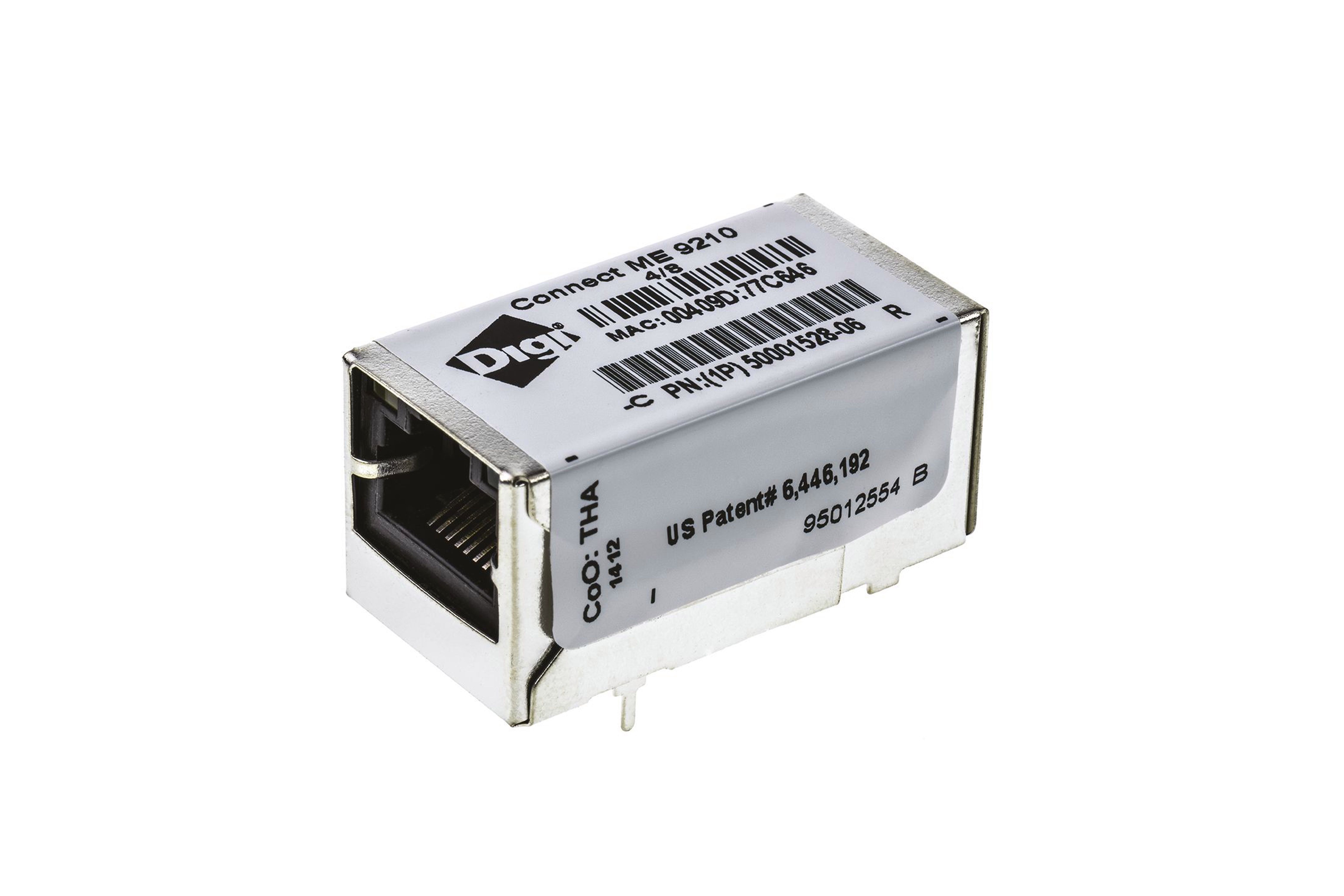

Product Images
