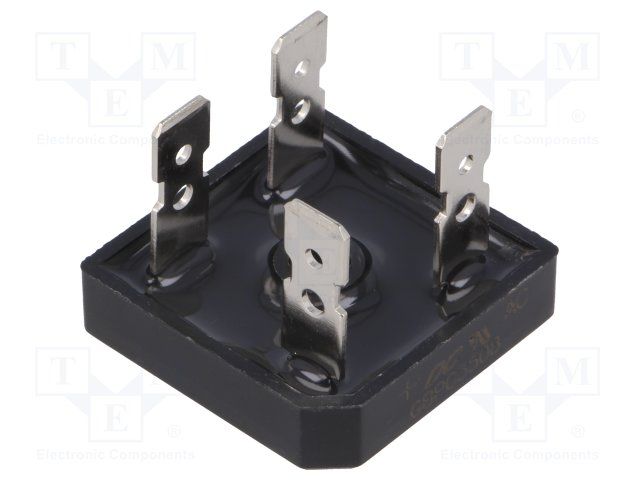

The GBPC3508 is a high-current rectifier diode with a maximum operating temperature of 150°C and a minimum operating temperature of -65°C. It has a maximum surge current of 400A and a maximum reverse leakage current of 5uA. The diode is packaged in a tray with 100 units per package and is RoHS compliant. The GBPC3508 has a capacitance of 300pF and a DC rated voltage of 800V. It measures 28.8mm in length and 8mm in height.
Checking distributor stock and pricing after the page loads.
Diodes GBPC3508 technical specifications.
| Capacitance | 300pF |
| Current Rating | 35A |
| Height | 8mm |
| Lead Free | Exempt |
| Length | 28.8mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Reverse Leakage Current | 5uA |
| Max Surge Current | 400A |
| Output Current | 35A |
| Package Quantity | 100 |
| Packaging | Tray |
| RoHS Compliant | Yes |
| DC Rated Voltage | 800V |
| Width | 28.8mm |
| RoHS | Compliant |
No datasheet is available for this part.
