Technical Specifications
Diodes LL41487 technical specifications.
General
| Average Rectified Current | 150mA |
| Forward Current | 150mA |
| Height | 1.6mm |
| Lead Free | Lead Free |
| Length | 3.7mm |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 75V |
| Max Reverse Current | 5uA |
| Max Reverse Voltage (DC) | 75V |
| Max Surge Current | 2A |
| Mount | Surface Mount |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 2A |
| Power Dissipation | 500mW |
| Radiation Hardening | No |
| Reverse Recovery Time | 4ns |
| Reverse Recovery Time-Max | 4ns |
| Weight | 0.000423oz |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Diodes LL41487 Datasheet
Download the complete datasheet for Diodes LL41487 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

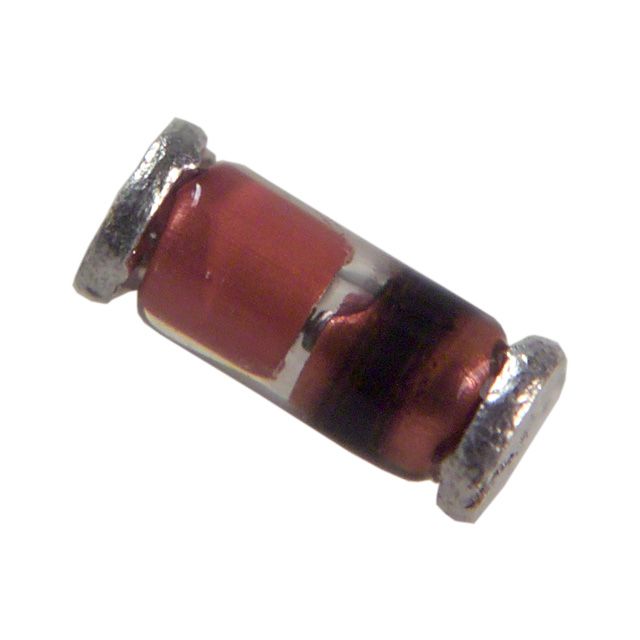

Product Images
