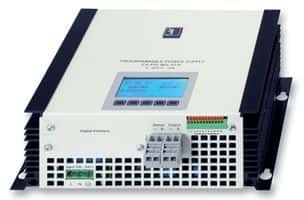

The EA Elektro-Automatik EA-PSI832-10R is a single-output DC power supply with a maximum output voltage of 32V and a maximum output current of 10A. It has a maximum output power of 320W and an efficiency of 90%. The power supply measures 218mm in length, 163mm in width, and 90mm in height, and weighs 4.7kg. It operates within a temperature range of 0°C to 50°C and can be mounted using screws. The power supply is not SVHC compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the EA Elektro-Automatik EA-PSI832-10R datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Depth | 83mm |
| Efficiency | 90% |
| Height | 90mm |
| Input Current | 1.6A |
| Length | 218mm |
| Max Operating Temperature | 50°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 10A |
| Max Output Power | 320W |
| Max Output Voltage | 32V |
| Min Output Voltage | 0V |
| Max Supply Voltage (AC) | 264V |
| Min Supply Voltage (AC) | 90V |
| Max Supply Voltage | 264V |
| Min Supply Voltage | 90V |
| Mount | Screw |
| Number of Outputs | 1 |
| Output Current | 10A |
| Output Power | 320W |
| Output Voltage | 32V |
| Reach SVHC Compliant | No |
| Resistance | -10R |
| Weight | 4.7kg |
| Width | 163mm |
| RoHS | Compliant |
