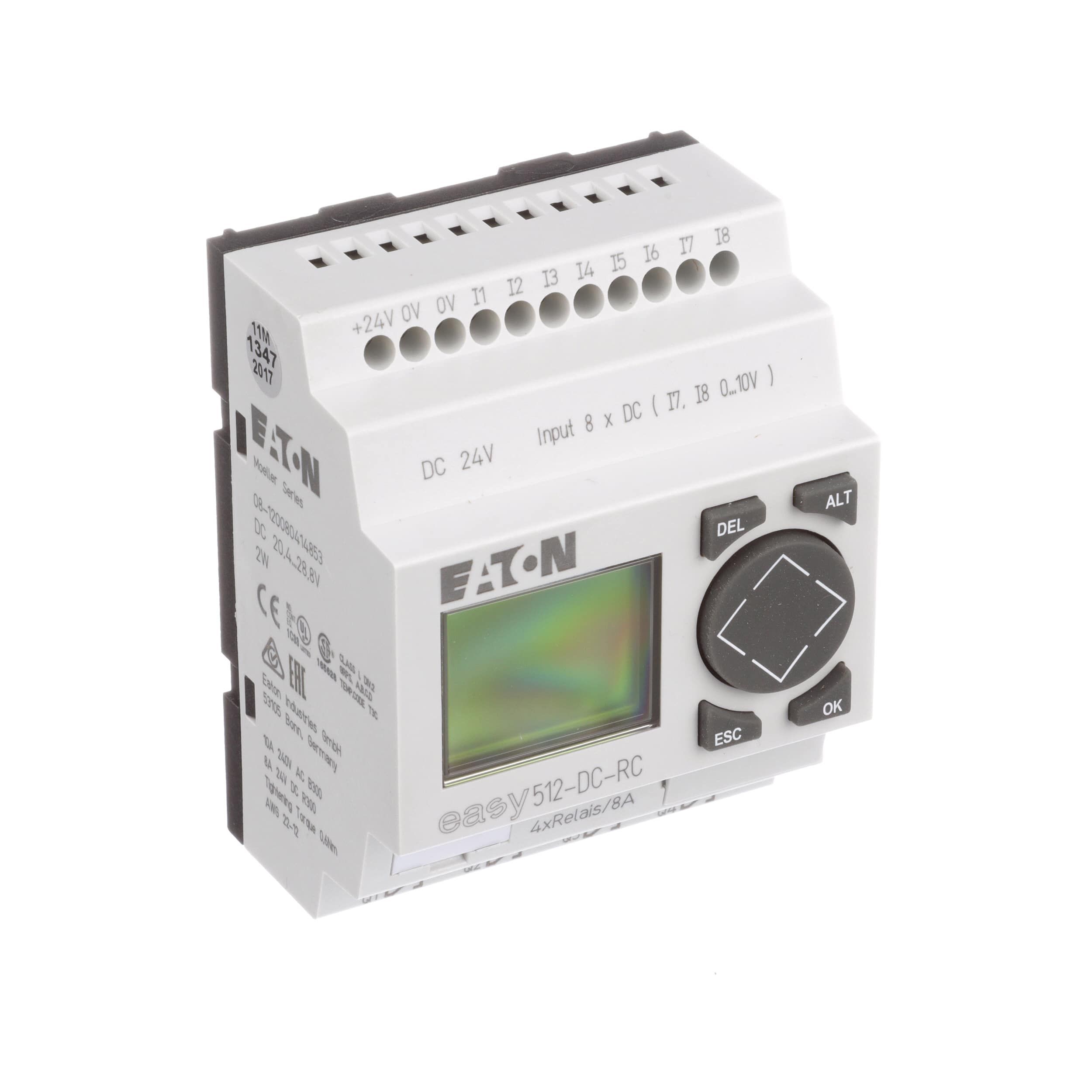

The EASY512-DC-RC is an 8-channel relay module from the Easy 500 Series, designed for DIN rail mounting. It operates within a temperature range of -25 to 55°C and is rated for 10A output current at 24V supply voltage. The module is compliant with IP20 ratings and has a maximum supply voltage of 28.8V and minimum of 20.4V. It measures 71.5mm in width, 110mm in length, and 58mm in depth.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Eaton EASY512-DC-RC datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Eaton EASY512-DC-RC technical specifications.
| Package/Case | Module |
| Depth | 58mm |
| Length | 110mm |
| Manufacturer Series | Easy 500 |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage (DC) | 28.8V |
| Min Supply Voltage (DC) | 20.4V |
| Mount | DIN Rail |
| Number of Inputs | 8 |
| Number of Outputs | 4 |
| Operating Supply Voltage | 24V |
| Output Current | 10A |
| Output Type | RELAY |
| Ratings | IP20 |
| Reach SVHC Compliant | No |
| Series | EASY500 Series |
| Width | 71.5mm |
| RoHS | Compliant |
