Surface mount power inductor featuring a ferrite core. Offers inductance of 950nH with a 10% tolerance at 100kHz. Rated for a maximum DC current of 12A and a saturation current of 11.5A, with a low DC resistance of 0.42mR. Operates across a temperature range of -40°C to 125°C and is supplied in tape and reel packaging.
PackageNonstandard
Current Rating35A
MountingSurface Mount
Inductance950nH
Quick Jump:
Technical Specifications
Eaton FP1109-1R0-R technical specifications.
General
Package/Case
Nonstandard
Core Material
Ferrite
Current Rating
35A
DC Resistance (DCR)
0.42mR
Depth
11.2mm
Height
9mm
Height - Seated (Max)
0.354inch
Inductance
950nH
Length
11.2mm
Max DC Current
12A
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
350
Packaging
Tape and Reel
RoHS Compliant
Yes
Saturation Current
11.5A
Self Resonant Frequency
2MHz
Series
FP1109
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
100kHz
Tolerance
10%
Weight
0.016oz
Width
0.441inch
Compliance
RoHS
Compliant
Datasheet
Eaton FP1109-1R0-R Datasheet
Download the complete datasheet for Eaton FP1109-1R0-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

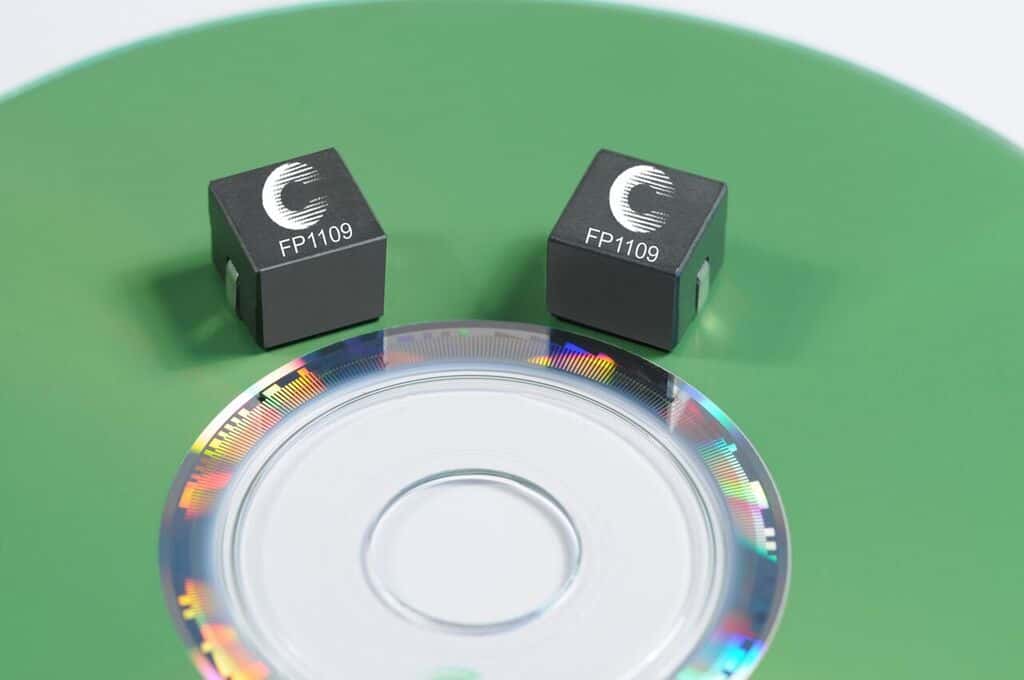

Product Images
